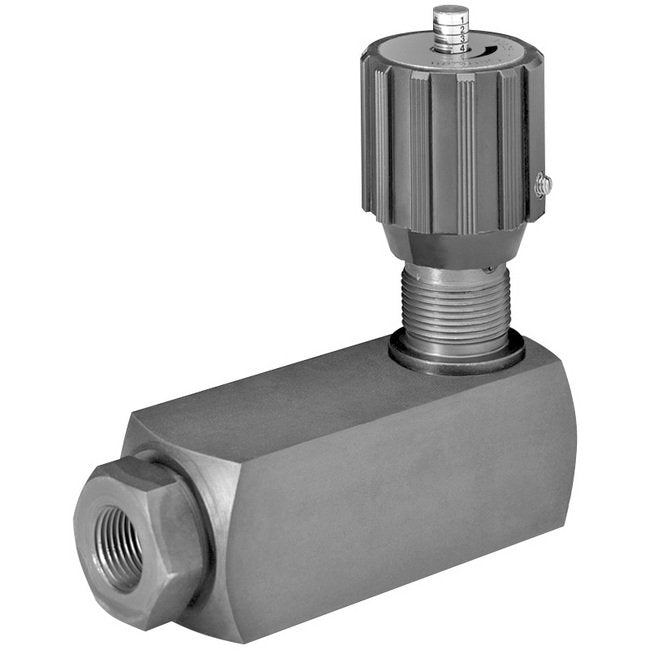

Pressure Compensated Flow Control Valve with Check, BSPP - SRVR-08
Pressure Compensated Flow Control Valve with Check, BSPP - SRVR-08
SKU:ACC-741c53
Precise DIN 3852 compliant Flow Control Valve with Check. Ideal for industrial applications. Operates at 345 bar | 5000 psi.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Pressure Compensated Flow Control Valve with Check, BSPP - SRVR-08
$89.99
Quantity: 1
Claim Your Seller Account
Pressure Compensated Flow Control Valve with Check, BSPP - SRVR-08
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SRVR-08 BSPP Pressure Compensated Flow Control Valve with Check is a reliable and efficient solution for precise flow control in industrial applications. Meeting DIN 3852 standards, this valve features a durable carbon steel housing, Zinc Plated finish, and operates at pressures up to 345 bar | 5000 psi. With dimensions designed for optimal performance and a unique safety spindle design, this valve ensures accurate and safe operation. Whether for inline mounting or panel installation, the color-coded spindle allows for easy flow control adjustment. Ideal for a wide range of sectors, this valve offers versatility and durability to meet various operational needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Dimension B
2.64 in | 67 mm
Dimensions Dimension C
0.59 in | 15 mm
Dimensions Dimension D
1.18 in | 30 mm
Dimensions Dimension E
0.69 in | 17.5 mm
Features 0
8 sizes, 1/8" - 1-1/2"NPTF or SAE O-Ring threaded connections, or manifold mountingFPM (Fluoroelastomer) O-Rings (standard)Color coded spindle for accurate flow controlProvision for panel mountingUnique safety spindle design
Note 0
Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºCDimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Diameter G
1.14 in | 29 mm
Specifications Diameter H
0.75 in | 19 mm
Specifications Dimension A
2.91 in | 74 mm
Specifications Dimension F
3.62 in | 92 mm
Specifications Division
ACCESSORIES
Specifications End Size
G 1/4
Specifications End Type
BSPP
Specifications Finish
Zinc Plated
Specifications Hex Size
0.94 in | 24 mm
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
DIN 3852
Specifications Model Code Description
SRVR-08-01.X/0
Specifications Mounting Type
In-Line Mounting
Specifications Nominal Size
08
Specifications Operating Pressure
345 bar | 5000 psi
Specifications Port Configuration
BSPP
Specifications Primary Image
SRVR Series_P
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Secondary Image
SRVR Series S
Specifications Second End Size
G 1/4
Specifications Second End Type
BSPP
Specifications Temperature At Full Pressure Max
212 ºF
Specifications Temperature At Full Pressure Min
-4 ºF
Specifications Type
Flow Control Valve
Specifications Valve Operator
Knob
Specifications Valve Operator Material
Plastic
Specifications Weight
1.3 kg | 0.6 lb
Specifications Worksheet Tab Name
Hydac
