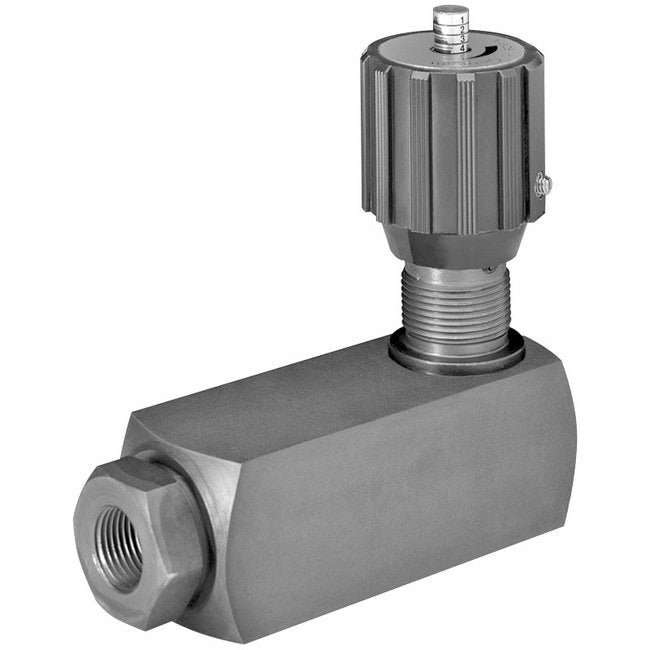

Pressure Compensated Flow Control Valve with Check - SRVR-10 NPTF
Pressure Compensated Flow Control Valve with Check - SRVR-10 NPTF
SKU:ACC-d08979
Precision flow control valve with check, ANSI certified, durable carbon steel housing, versatile mounting options
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Pressure Compensated Flow Control Valve with Check - SRVR-10 NPTF
$129.99
Quantity: 1
Claim Your Seller Account
Pressure Compensated Flow Control Valve with Check - SRVR-10 NPTF
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SRVR-10 NPTF Pressure Compensated Flow Control Valve with Check is a high-quality valve designed for precision flow control in industrial applications. This valve, meeting American National Standards Institute (ANSI) certification, features a durable carbon steel housing, NPTF port configuration, and unique safety spindle design. With a wide temperature range from -4°F to 212°F and operating pressure of 345 bar | 5000 psi, it ensures reliable performance in demanding conditions. The color-coded spindle allows for accurate flow control, while the provision for panel mounting adds versatility to installation. Trust in the SRVR-10 for efficient and compliant flow control.
Product Specifications
Dimensions Dimension B
3.23 in | 82 mm
Dimensions Dimension C
0.69 in | 17.5 mm
Dimensions Dimension D
1.38 in | 35 mm
Dimensions Dimension E
0.71 in | 18 mm
Features 0
8 sizes, 1/8" - 1-1/2"NPTF or SAE O-Ring threaded connections, or manifold mountingFPM (Fluoroelastomer) O-Rings (standard)Color coded spindle for accurate flow controlProvision for panel mountingUnique safety spindle design
Note 0
Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºCDimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Diameter G
1.50 in | 38 mm
Specifications Diameter H
0.91 in | 23 mm
Specifications Dimension A
3.62 in | 92 mm
Specifications Dimension F
4.13 in | 105 mm
Specifications Division
ACCESSORIES
Specifications End Size
3/8 in.
Specifications End Type
NPTF
Specifications Finish
Zinc Plated
Specifications Hex Size
1.06 in | 27 mm
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
American National Standards Institute (ANSI)
Specifications Model Code Description
SRVR-10-01.X/5
Specifications Mounting Type
In-Line Mounting
Specifications Nominal Size
10
Specifications Operating Pressure
345 bar | 5000 psi
Specifications Port Configuration
NPTF (ANSI B1.20.3)
Specifications Primary Image
SRVR Series_P
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Secondary Image
SRVR Series S
Specifications Second End Size
3/8 in.
Specifications Second End Type
NPTF
Specifications Temperature At Full Pressure Max
212 ºF
Specifications Temperature At Full Pressure Min
-4 ºF
Specifications Type
Flow Control Valve
Specifications Valve Operator
Knob
Specifications Valve Operator Material
Plastic
Specifications Weight
2.0 kg | 0.9 lb
Specifications Worksheet Tab Name
Hydac
