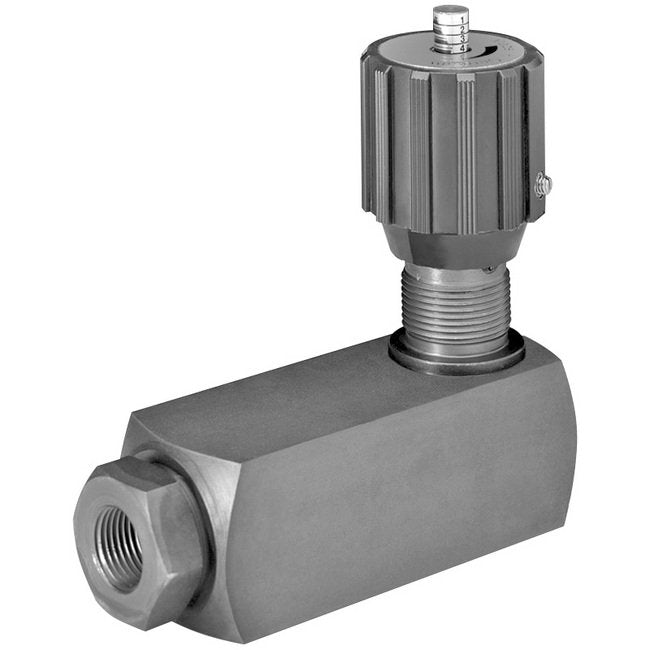

The SRVR-12 NPTF Pressure Compensated Flow Control Valve with Check is a reliable and robust solution for precise flow control in industrial applications. This valve, compliant with American National Standards Institute (ANSI) standards, features a carbon steel housing and a zinc plated finish for durability. With an operating pressure of 345 bar | 5000 psi and a temperature range from -4 ºF to 212 ºF, this valve ensures optimal performance in varying conditions. The color-coded spindle and unique safety spindle design enhance accuracy and safety during operation. Additionally, the provision for panel mounting offers flexibility in installation, making it a versatile choice for institutional and government procurement needs.
Product Specifications
Dimensions Dimension B
3.78 in | 96 mm
Dimensions Dimension C
0/89 in | 22.5 mm
Dimensions Dimension D
1.77 in | 45 mm
Dimensions Dimension E
0.83 in | 21 mm
Features 0
8 sizes, 1/8" - 1-1/2"NPTF or SAE O-Ring threaded connections, or manifold mountingFPM (Fluoroelastomer) O-Rings (standard)Color coded spindle for accurate flow controlProvision for panel mountingUnique safety spindle design
Note 0
Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºCDimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Diameter G
1.50 in | 38 mm
Specifications Diameter H
0.91 in | 23 mm
Specifications Dimension A
4.17 in | 106 mm
Specifications Dimension F
4.92 in | 125 mm
Specifications Division
ACCESSORIES
Specifications End Size
1/2 in.
Specifications End Type
NPTF
Specifications Finish
Zinc Plated
Specifications Hex Size
1.26 in | 32 mm
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
American National Standards Institute (ANSI)
Specifications Model Code Description
SRVR-12-01.X/5
Specifications Mounting Type
In-Line Mounting
Specifications Nominal Size
12
Specifications Operating Pressure
345 bar | 5000 psi
Specifications Port Configuration
NPTF (ANSI B1.20.3)
Specifications Primary Image
SRVR Series_P
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Secondary Image
SRVR Series S
Specifications Second End Size
1/2 in.
Specifications Second End Type
NPTF
Specifications Temperature At Full Pressure Max
212 ºF
Specifications Temperature At Full Pressure Min
-4 ºF
Specifications Type
Flow Control Valve
Specifications Valve Operator
Knob
Specifications Valve Operator Material
Plastic
Specifications Weight
3.8 kg | 1.7 lb
Specifications Worksheet Tab Name
Hydac
