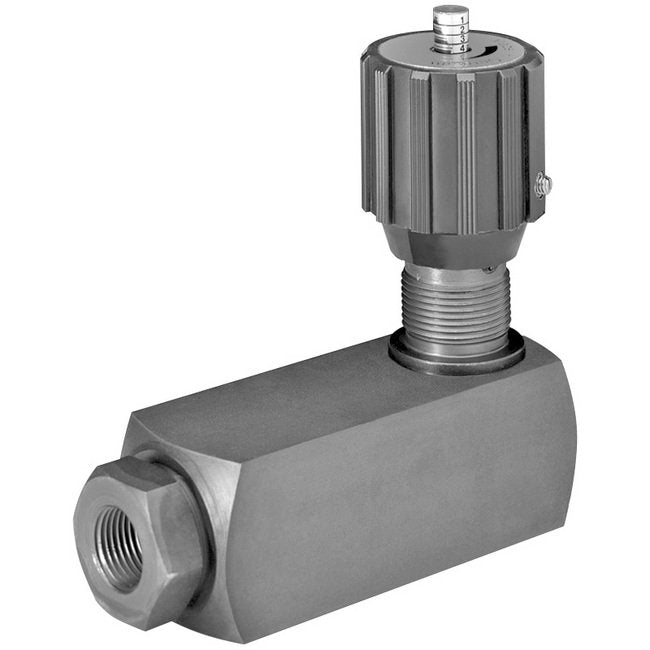

The SRVR-16 NPTF Pressure Compensated Flow Control Valve with Check is a reliable solution designed for precise flow control in industrial settings. With a port configuration of NPTF (ANSI B1.20.3) and a sturdy carbon steel housing, this valve ensures durability and performance. It features color-coded spindle for accurate flow control, FPM O-Rings, and a unique safety spindle design, making it easy to use and ensuring operational safety. This valve meets American National Standards Institute (ANSI) certifications, making it ideal for applications requiring adherence to quality standards.
Product Specifications
Dimensions Dimension B
3.88 in | 98.5 mm
Dimensions Dimension C
0.98 in | 25 mm
Dimensions Dimension D
1.97 in | 50 mm
Dimensions Dimension E
1.02 in | 26 mm
Features 0
8 sizes, 1/8" - 1-1/2"NPTF or SAE O-Ring threaded connections, or manifold mountingFPM (Fluoroelastomer) O-Rings (standard)Color coded spindle for accurate flow controlProvision for panel mountingUnique safety spindle design
Note 0
Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºCDimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Diameter G
1.50 in | 38 mm
Specifications Diameter H
0.91 in | 23 mm
Specifications Dimension A
4.27 in | 108.5 mm
Specifications Dimension F
5.51 in | 140 mm
Specifications Division
ACCESSORIES
Specifications End Size
3/4 in.
Specifications End Type
NPTF
Specifications Finish
Zinc Plated
Specifications Hex Size
1.61 in | 41 mm
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
American National Standards Institute (ANSI)
Specifications Model Code Description
SRVR-16-01.X/5
Specifications Mounting Type
In-Line Mounting
Specifications Nominal Size
16
Specifications Operating Pressure
345 bar | 5000 psi
Specifications Port Configuration
NPTF (ANSI B1.20.3)
Specifications Primary Image
SRVR Series_P
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Secondary Image
SRVR Series S
Specifications Second End Size
3/4 in.
Specifications Second End Type
NPTF
Specifications Temperature At Full Pressure Max
212 ºF
Specifications Temperature At Full Pressure Min
-4 ºF
Specifications Type
Flow Control Valve
Specifications Valve Operator
Knob
Specifications Valve Operator Material
Plastic
Specifications Weight
4.9 kg | 2.2 lb
Specifications Worksheet Tab Name
Hydac
