PRM Bench Milling/Drilling Machine - Precision Series
PRM Bench Milling/Drilling Machine - Precision Series
SKU:MIL-4d70f9
Achieve precision and superior results with the PRM Bench Milling/Drilling Machine - Precision Series. Ideal for drilling, milling, and tapping, backed by a Two Year Warranty.
Regular price
$4,299.00
Regular price
Sale price
$4,299.00
Unit price
per
Initiate Order
PRM Bench Milling/Drilling Machine - Precision Series
$4,299.00
Quantity: 1
Claim Your Seller Account
PRM Bench Milling/Drilling Machine - Precision Series
$4,299.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PRM Bench Milling/Drilling Machine, part of the Precision Series, combines high precision Class 7 spindle bearings with the rugged stability of Meehanite® castings to deliver exceptional performance. Featuring a three-stage power down feed with auto stop and internally cooled spindle head, this versatile machine excels in drilling, milling, and tapping tasks. With a sturdy construction, R8 taper spindle, and a variety of included accessories, this machine meets the demands of precision engineering jobs. Backed by JET's Two Year Warranty, the PRM Bench Milling/Drilling Machine ensures superior results and durability.
Product Specifications
Features Features

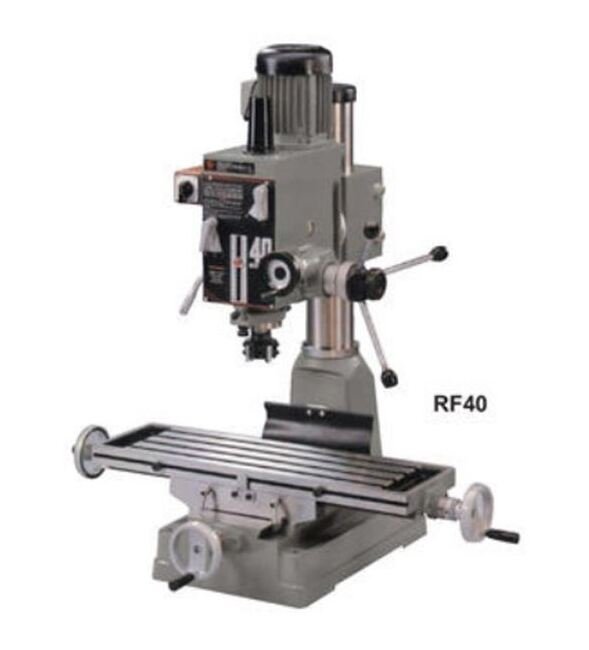

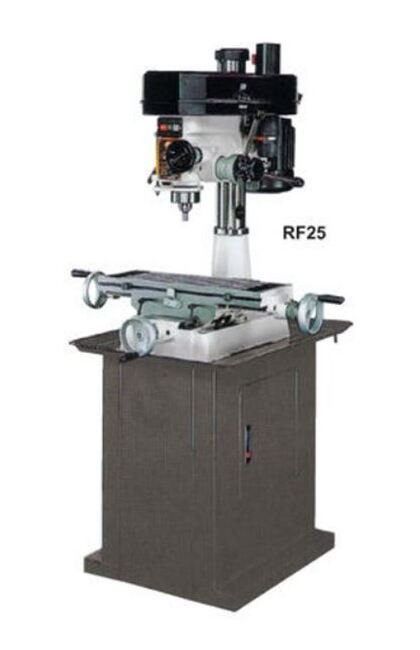

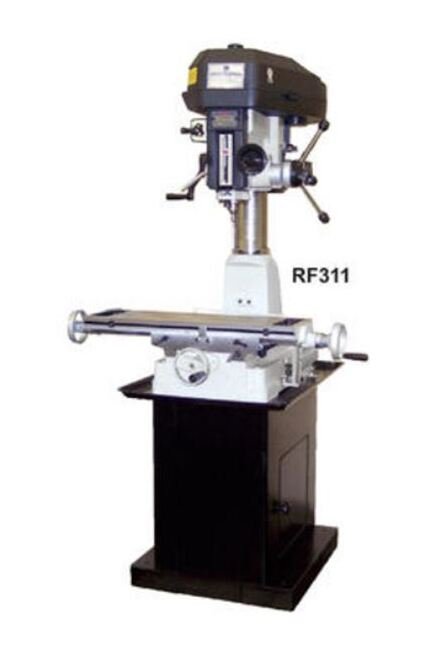

Versatile and multi-purpose machine can be used for drilling, milling and even tappingHas features of many larger mills, sturdy construction, headstock swings 360° and moves up and down on column to meet various job requirements, R8 taper spindle, bronze adjustable leadscrew nuts, large cast tables with T-slots, heavy duty tapered roller bearings to support the spindle, hinged belt cover allows speedy belt changes, satin finish easy to read dials, positive easy to read depth gaugeRF25, RF311 & RF313 are step pulley headsRF40 is gear headRF313PFS equipped with power feed on the spindle1 Year parts warranty
Optional Accessories Optional Accessories

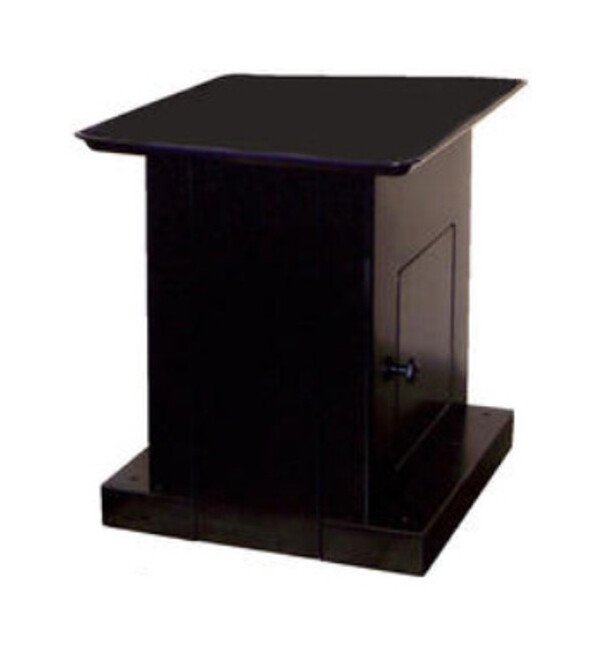

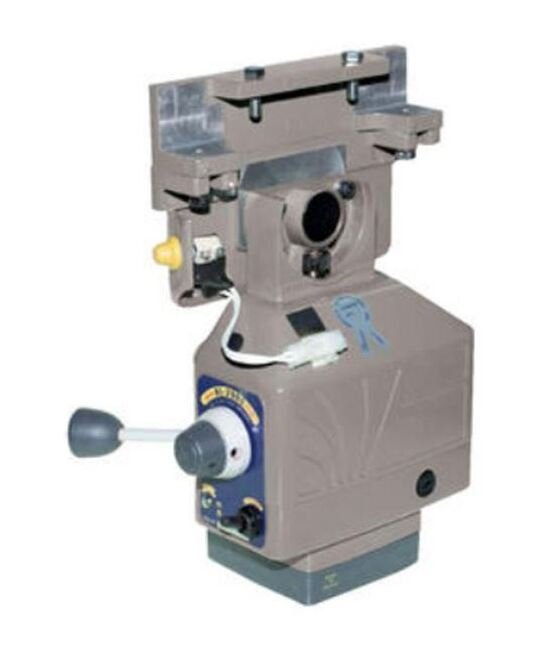

Steel cabinet standPowerfeed for table
Standard Equipment Standard Equipment
Manual reversing switch, tilting vise, shell end mill cutter, cutter arbor, 1/2" drill chuck, drill chuck arbor, service tools and instructions
Technical Specs Brands
PRM
Technical Specs Number Of Spindle Speeds
12
Technical Specs Output Power
Bench Mill/Drill hp
Technical Specs Quill Diameter
2 1/2 in
Technical Specs Quill Travel
4 in
Technical Specs Saddle Travel Y Axis
6 1/4 in
Technical Specs Spindle Motor Phase
1
Technical Specs Spindle Motor Power
1 hp
Technical Specs Spindle Speeds
110 to 2580 rpm
Technical Specs Spindle Taper
R8
Technical Specs Table Length
23 in
Technical Specs Table Width
7 1/2 in
Technical Specs Voltage
110 to 220 V
Technical Specs Weight
440 lb
Technical Specs X Axis Table Travel
14-1/2 in
