PRM Precision Bench Milling/Drilling Machine
PRM Precision Bench Milling/Drilling Machine
SKU:MIL-820e12
Experience precision and reliability with the PRM Precision Bench Milling/Drilling Machine. Ideal for industrial applications, this machine offers exceptional stability and high performance.
Regular price
$5,899.99
Regular price
Sale price
$5,899.99
Unit price
per
Initiate Order
PRM Precision Bench Milling/Drilling Machine
$5,899.99
Quantity: 1
Claim Your Seller Account
PRM Precision Bench Milling/Drilling Machine
$5,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PRM Precision Bench Milling/Drilling Machine is a versatile powerhouse designed to meet the demanding requirements of industrial and government procurement. With a robust construction and high precision Class 7 spindle bearings, this machine offers outstanding stability and performance. The Quill Travel of 5 inches, R8 Spindle Taper, and 2 HP Spindle Motor Power ensure precise operations for milling, drilling, and tapping tasks. Equipped with features like a tilting vise, adjustable leadscrew nuts, and large cast tables with T-slots, this machine is ideal for a wide range of applications. Backed by JET's exceptional engineering and a Two Year Warranty, the PRM Precision Bench Milling/Drilling Machine is the ultimate choice for professionals seeking top-notch quality and reliability.
Product Specifications
Features Features

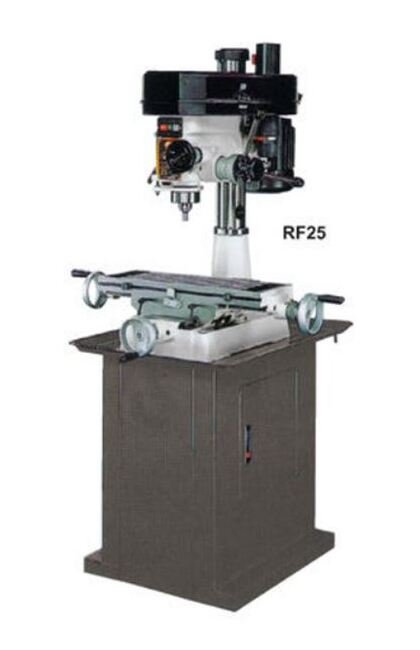

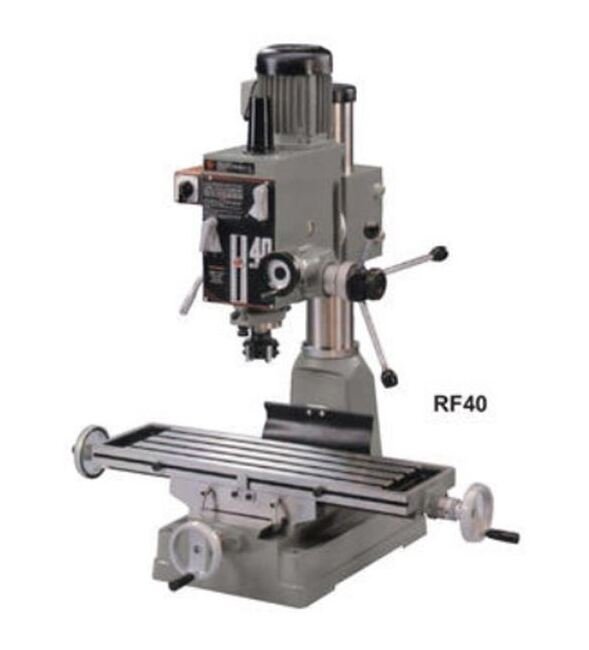

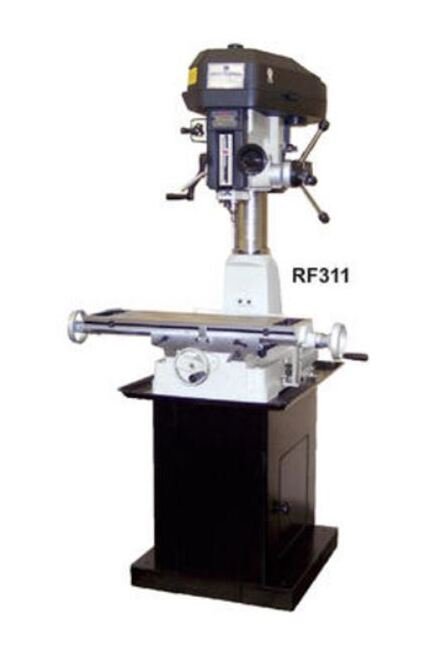

Versatile and multi-purpose machine can be used for drilling, milling and even tappingHas features of many larger mills, sturdy construction, headstock swings 360° and moves up and down on column to meet various job requirements, R8 taper spindle, bronze adjustable leadscrew nuts, large cast tables with T-slots, heavy duty tapered roller bearings to support the spindle, hinged belt cover allows speedy belt changes, satin finish easy to read dials, positive easy to read depth gaugeRF25, RF311 & RF313 are step pulley headsRF40 is gear headRF313PFS equipped with power feed on the spindle1 Year parts warranty
Optional Accessories Optional Accessories

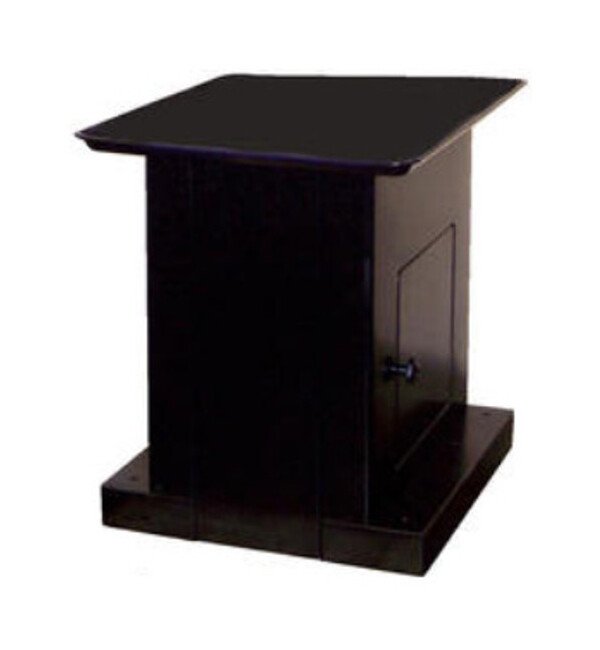

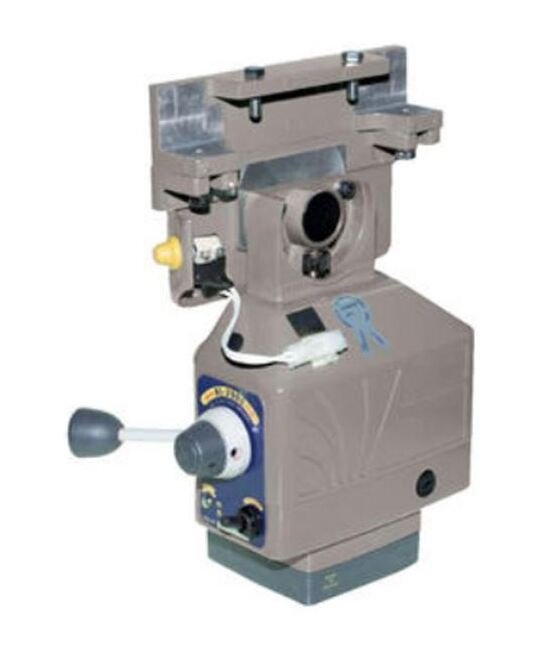

Steel cabinet standPowerfeed for table
Standard Equipment Standard Equipment
Manual reversing switch, tilting vise, shell end mill cutter, cutter arbor, 1/2" drill chuck, drill chuck arbor, service tools and instructions
Technical Specs Brands
PRM
Technical Specs Number Of Spindle Speeds
12
Technical Specs Output Power
Bench Mill/Drill hp
Technical Specs Quill Diameter
3 in
Technical Specs Quill Travel
5 in
Technical Specs Saddle Travel Y Axis
7 in
Technical Specs Spindle Motor Phase
1
Technical Specs Spindle Motor Power
2 hp
Technical Specs Spindle Speeds
140 to 2500 rpm
Technical Specs Spindle Taper
R8
Technical Specs Table Length
28 in
Technical Specs Table Width
8 in
Technical Specs Voltage
110 to 220 V
Technical Specs Weight
600 lb
Technical Specs X Axis Table Travel
19 3/4 in
