PRM Precision Bench Milling/Drilling Machine
PRM Precision Bench Milling/Drilling Machine
SKU:MIL-a1391c
Experience precision and versatility with the PRM Precision Bench Milling/Drilling Machine - ideal for drilling, milling, and tapping operations.
Regular price
$6,799.00
Regular price
Sale price
$6,799.00
Unit price
per
Initiate Order
PRM Precision Bench Milling/Drilling Machine
$6,799.00
Quantity: 1
Claim Your Seller Account
PRM Precision Bench Milling/Drilling Machine
$6,799.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PRM Precision Bench Milling/Drilling Machine offers exceptional precision and versatility for a wide range of machining tasks. Featuring a three-stage power down feed with auto stop and high precision Class 7 spindle bearings, this rugged machine is built on Meehanite® castings for stability and durability. The internally cooled spindle head prevents seizing while the included features like the tilting vise, R8 taper spindle, and large cast tables with T-slots ensure superior performance. Ideal for drilling, milling, and tapping operations, this machine is a reliable workhorse backed by JET's industry-leading Two Year Warranty.
Product Specifications
Features Features

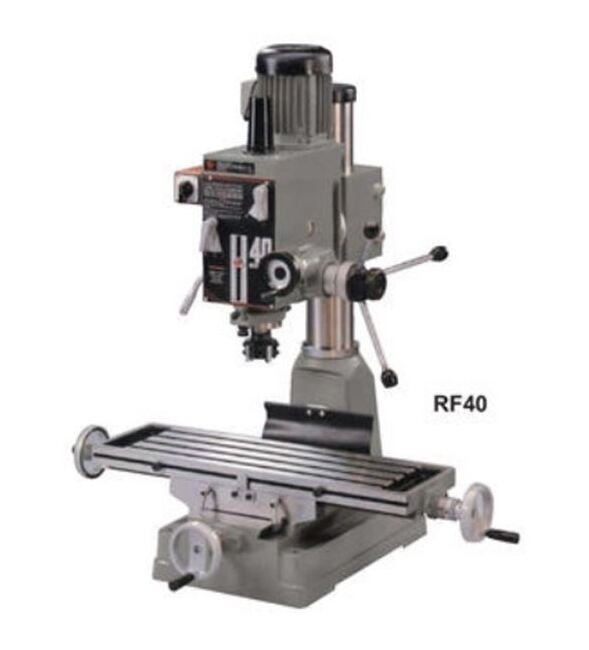

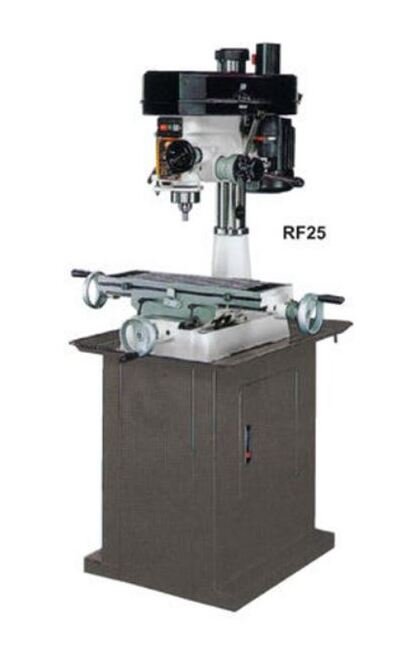

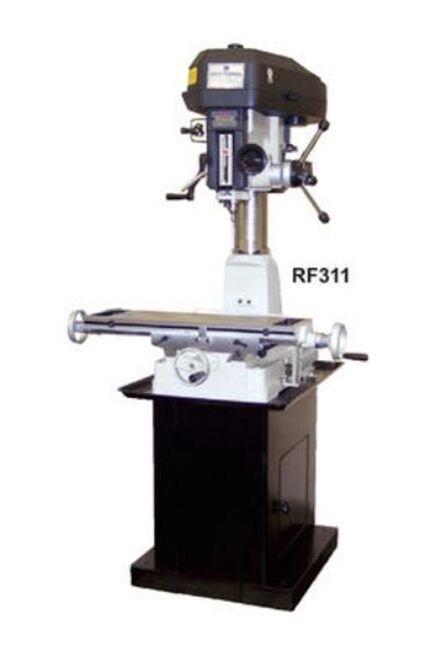

Versatile and multi-purpose machine can be used for drilling, milling and even tappingHas features of many larger mills, sturdy construction, headstock swings 360° and moves up and down on column to meet various job requirements, R8 taper spindle, bronze adjustable leadscrew nuts, large cast tables with T-slots, heavy duty tapered roller bearings to support the spindle, hinged belt cover allows speedy belt changes, satin finish easy to read dials, positive easy to read depth gaugeRF25, RF311 & RF313 are step pulley headsRF40 is gear headRF313PFS equipped with power feed on the spindle1 Year parts warranty
Optional Accessories Optional Accessories

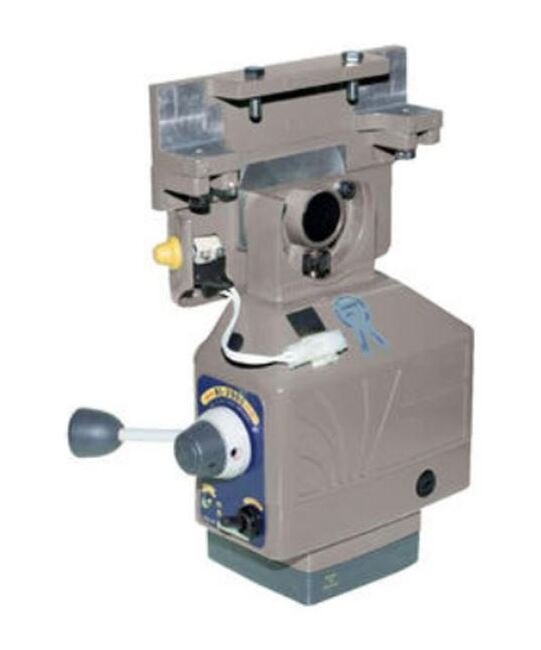

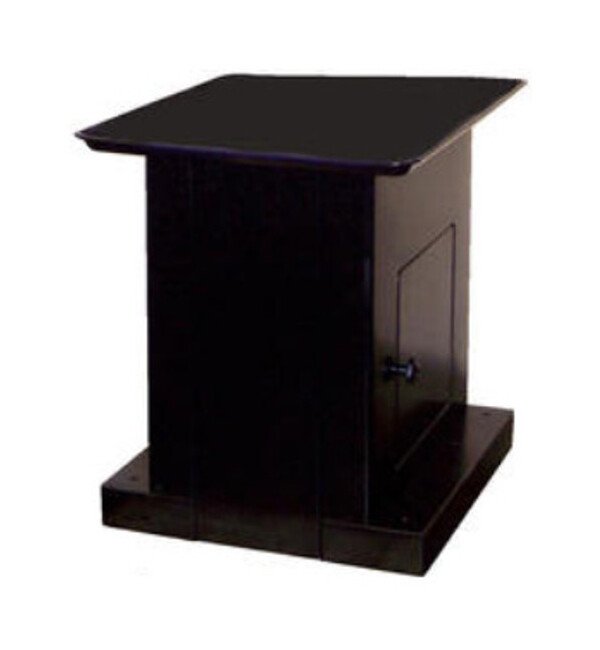

Steel cabinet standPowerfeed for table
Standard Equipment Standard Equipment
Manual reversing switch, tilting vise, shell end mill cutter, cutter arbor, 1/2" drill chuck, drill chuck arbor, service tools and instructions
Technical Specs Brands
PRM
Technical Specs Number Of Spindle Speeds
12
Technical Specs Output Power
Bench Mill/Drill w/ Powerfeed hp
Technical Specs Quill Diameter
3 in
Technical Specs Quill Travel
5 in
Technical Specs Saddle Travel Y Axis
7 in
Technical Specs Spindle Motor Phase
3
Technical Specs Spindle Motor Power
2 hp
Technical Specs Spindle Speeds
140 to 2500 rpm
Technical Specs Spindle Taper
R8
Technical Specs Table Length
28 in
Technical Specs Table Width
8 in
Technical Specs Voltage
220 to 440 V
Technical Specs Weight
600 lb
Technical Specs X Axis Table Travel
19 3/4 in
