Pro-Finish Blast Cabinets
Pro-Finish Blast Cabinets
SKU:EMP-f35fd5
Boost efficiency and quality with Pro-Finish Blast Cabinets. Ideal for surface finishing tasks with precise control.
Regular price
$6,799.99
Regular price
Sale price
$6,799.99
Unit price
per
Initiate Order
Pro-Finish Blast Cabinets
$6,799.99
Quantity: 1
Claim Your Seller Account
Pro-Finish Blast Cabinets
$6,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance surface finishing efficiency with Pro-Finish Blast Cabinets. Ideal for various tasks like deburring, peening, and cleaning, these rugged cabinets provide precise control over the blasting process. Available in different sizes with features like pressure or suction blast systems, turntables, and extended-wear options, they reduce maintenance costs. Boost productivity, quality, and environmental compliance with Pro-Finish Blast Cabinets.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Pro Finish Blast Cabinet Features
Pro Finish Blast Cabinet Features

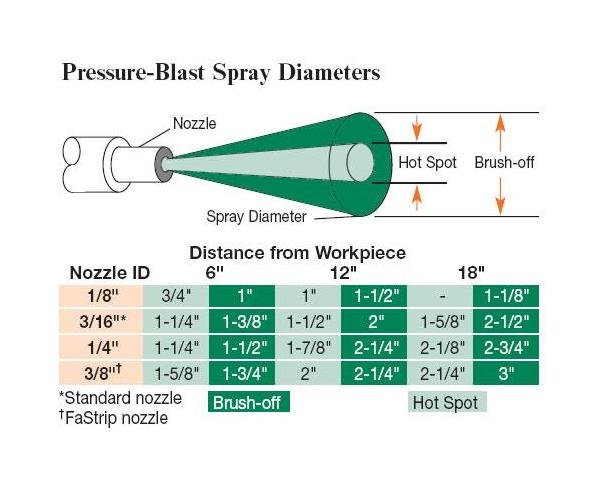

Specifications Ceramic Pressure Nozzle Diameter
3/16 in

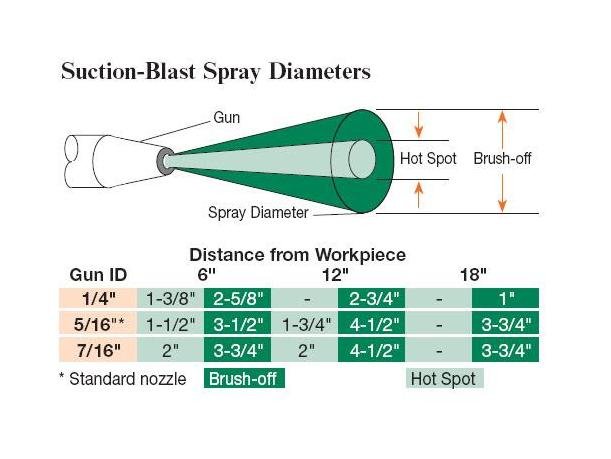

Specifications Ceramic Suction Nozzle Air Jet Diameter
5/16 - 5/32 in
Specifications Door Opening Height
32 in
Specifications Door Opening Width
29 in
Specifications Exhaust Fan Motor
2 hp

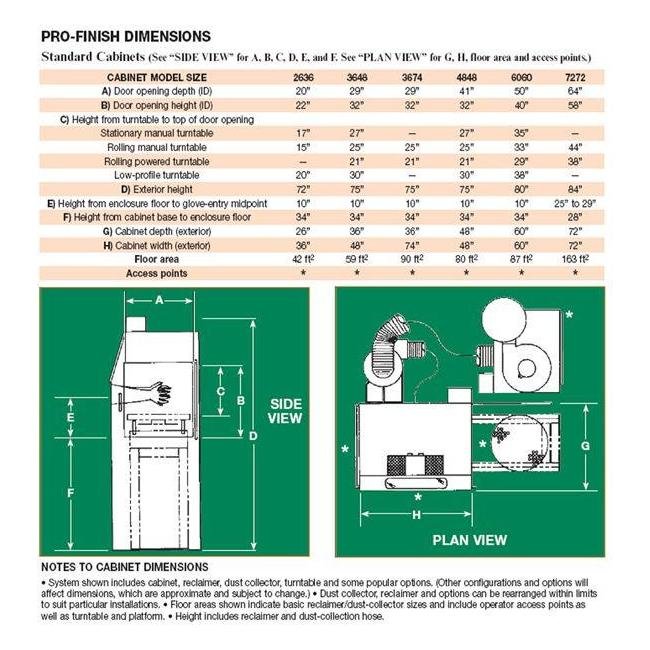

Specifications Interior Dimensions
36 x 74 x 36 in
Specifications Overall Dimensions
38 x 80 x 72 in
Specifications Pressure Suction Piping Diameters
1-1/2 in
Specifications Pro Finish Options

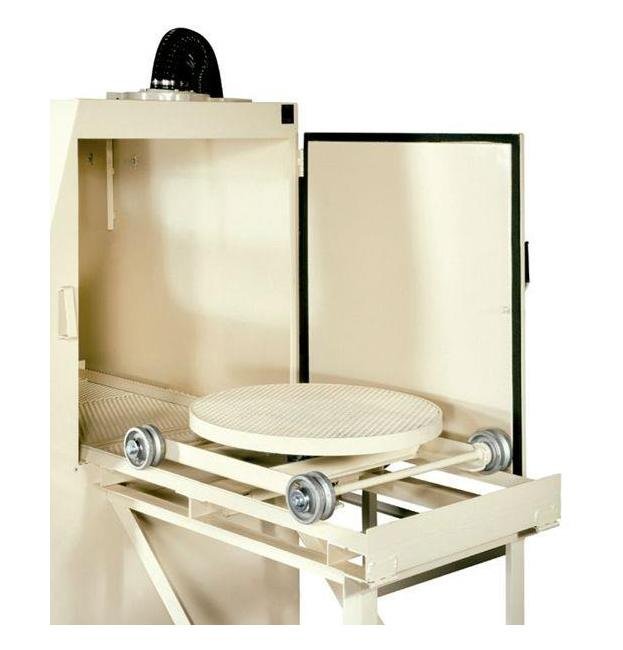

Turntables facilitate handling of heavy parts. (Manual turntable with dolly and outside platform shown to right.)Additional nozzles or guns (up to a total of two nozzles with pressure and up to four guns with suction) automate the blasting process when synchronized with powered oscillators and turntables.Rotating basket with timer speeds processing of smaller parts.Fixed-gun holder with adjustable arm frees both operator hands for parts blasting.Extended-wear options prolong equipment life while minimizing maintenance and downtime. Options include: rubber curtains in black or white; window protectors; heavy-duty, media-conveying duct; and DiCarb® or boron nozzles. Reclaimers can be upgraded with replaceable wear plates and urethane or Ultrawear linings.Automatic bag shaker frees operator for other tasks with bag-house dust collectors.Fully automatic photohelic controls purge dust from cartridge-type collectors without operator assistance.Rubber safety mats, placed around Pro-Finish cabinets, keep the immediate work area clean and reduce operator fatigue.
Specifications Reclaimer Ventilation Rate
900 ft³/min
Specifications Standard Features
Rubber, cloth-lined glovesErgonomic glove rings with operator armrests90-watt spotlightsDust-off gunPneumatic foot-treadle control14â x 22â safety-glass windowGeneral purpose filterLeveling boltsOSHA door switch14-gauge construction3/16â perforated floor with 1000-lb capacitySure-Flo® media regulator (pressure systems)One-cubic-foot ASME pressure vessel (pressure systems)
Specifications Standard Number Of Doors
2
