Process Tech DAS Phosphate Heaters - Superior Chemical Resistance
Process Tech DAS Phosphate Heaters - Superior Chemical Resistance
SKU:HEA-597286
DAS Series Phosphate Heaters with superior chemical resistance for industrial applications.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Process Tech DAS Phosphate Heaters - Superior Chemical Resistance
$599.99
Quantity: 1
Claim Your Seller Account
Process Tech DAS Phosphate Heaters - Superior Chemical Resistance
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

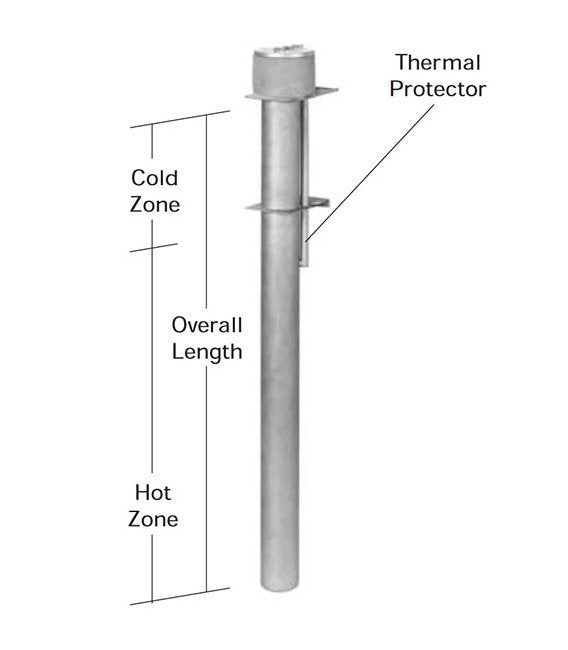

The Process Tech DAS Series Phosphate Heaters are expertly designed for iron, zinc, and manganese phosphate tank applications. With a robust schedule 40, heavy wall, 316 stainless steel sheath, these heaters offer exceptional durability and resistance to scaling. Featuring low watt densities for minimized scaling, a corrosion-resistant head with a rugged cast steel terminal enclosure, and safety features like grounded construction and built-in thermal protection, these heaters ensure reliable performance and longevity. Available in a range of sizes and voltages, with options for custom configurations and controls, these heaters are CE-certified and ideal for industrial settings requiring high chemical resistance and outstanding performance.
Product Specifications
Specifications Certifications
CE
Specifications Features And Benefits
SUPERIOR CHEMICAL RESISTANCE: For use in iron, zinc and manganese phosphate tanks.EXTREMELY RUGGED CONSTRUCTION: Schedule 40, heavy wall, 316 stainless steel sheath withstands scaling better than traditional heaters.OUTSTANDING PERFORMANCE: Low watt densities of 23 watts per square inch (3.5 w/cm2) helps to minimize scaling while only utilizing the space required for a full watt density heater.CORROSION RESISTANT HEAD: Rugged cast steel terminal enclosure with 3-foot (.9m) flexible PVC liquid tight conduit.SAFETY FEATURES:Grounded construction.Thermal protector built in. Replaceable P4 protector standard for solutions up to 230°F (110°C).Non-floating construction.CERTIFICATIONS: CE (except 600 volts).SIZES: 1,000 watts to 10,000 watts.VOLTAGES: 120 to 600 volts. Single phase standard, three phase available.OPTIONS AVAILABLE (consult factory):Thermal protectors: Replaceable high temperature fuses or resettable P2 bi-metal switches in two temperature ranges.Special configurations and lengths.Longer wire and conduit lengths.Temperature and level controls sized to match the heater.
Specifications Hot Zone
28 " | 710 mm
Specifications Manufacturer
Process Technology
Specifications Material
Phosphate
Specifications Note
NOTE: Do not use in any aluminum reactive alkaline solutions.
Specifications Overall Length
35 " | 890 mm
Specifications Phase
Single (Standard) | Three
Specifications Series
DAS Series
Specifications Shipping Weight
36.0 Pound
Specifications Volts
480 V
Specifications Watts
4000 W
Specifications Weight
36.0 lbs | 16.0 kg
