Process Tech UC Series Stainless Steel U Coils
Process Tech UC Series Stainless Steel U Coils
SKU:HEA-b07769
Rugged UC Series U Coils for superior chemical resistance and outstanding performance in heat exchange. Ideal for small tanks with low heat exchange requirements.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
Process Tech UC Series Stainless Steel U Coils
$199.99
Quantity: 1
Claim Your Seller Account
Process Tech UC Series Stainless Steel U Coils
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Process Tech UC Series U Coils offer superior chemical resistance with a wide variety of materials suitable for heating or cooling applications in alkaline or acid solutions. Featuring a rugged construction with heavy wall 316 stainless steel tubing, these coils provide outstanding performance with a low profile design maximizing heat exchange area. Leak-free operation is ensured with single point connections, and they come with a high pressure rating of 100 PSI. Options for special configurations, different materials such as Hastelloy C®, and fluoropolymer coatings for corrosion protection are available upon consultation with the factory.
Product Specifications
Features And Benefits Features And Benefits
SUPERIOR CHEMICAL RESISTANCE: Wide variety of materials available for use in heating or cooling applications for alkaline or acid solutions and rinse tanks. Check solution guide or consult with your chemical supplier for proper sheath material.RUGGED CONSTRUCTION:Heavy wall, 18-gauge metal tubing available in steel, 316 stainless steel, and titanium.1â diameter tubing.1â MNPT fittings standard.OUTSTANDING PERFORMANCE: One-inch thick, low profile design. Every inch of coil surface is active exchange area. Ideal for small tanks with low heat exchange requirements.LEAK-FREE OPERATION: Single point connections reduce the potential for leaks and simplifies installation. One-inch MNPT connections standard.HIGH PRESSURE RATING: 100 PSI working pressure (steam or water).SIZES: .75 square ft. to 2.5 square ft. of exchange area standard.OPTIONS AVAILABLE (consult factory):Special configurations and lengths.Heavier gauge tubing.Zirconium, Hastelloy C® and other alloys available.Fluoropolymer coatings for corrosion protection at solution/atmospheric interface.Non-conductive isolator couplings.L-shaped configurations for bottom heat applications.Higher pressure ratings available.Hastelloy C® is a registered trademark of Haynes International, Inc.

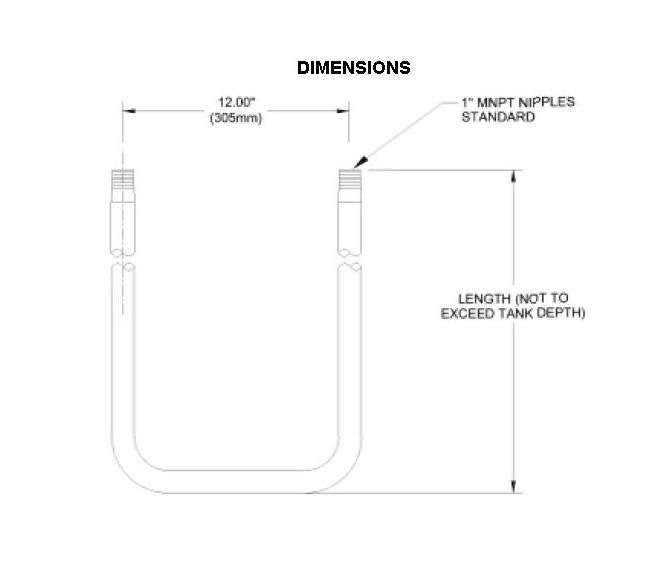

Specifications Available Tubing
1/2 " | 5/8 " | 3/4 " | 1 " | 1-1/4 "
Specifications Depth
36 " | 914 mm
Specifications Exchange Area
1.50 ft²
Specifications Manufacturer
Process Technology
Specifications Material
316 Stainless Steel
Specifications Shipping Weight
6.0 Pound
Specifications Weight
6.0 lbs | 2.7 kg
Specifications Width
12 " | 305 mm
