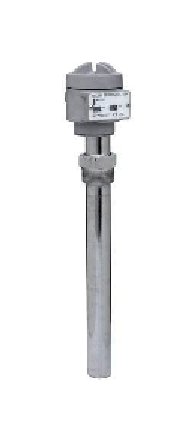

Process Technology 1-1/4" Small Tank Screw Plug Heater - 1500W, 120V, 316 SS
Process Technology 1-1/4" Small Tank Screw Plug Heater - 1500W, 120V, 316 SS
SKU:HEA-715d96
Process Technology TB Series 1-1/4" Small Tank Screw Plug Heater - Superior chemical resistance, rugged construction, outstanding performance. cULus listed & CE compliant.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Process Technology 1-1/4" Small Tank Screw Plug Heater - 1500W, 120V, 316 SS
$299.99
Quantity: 1
Claim Your Seller Account
Process Technology 1-1/4" Small Tank Screw Plug Heater - 1500W, 120V, 316 SS
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Process Technology TB Series 1-1/4" Small Tank Screw Plug Heater is designed for single-phase use with superior chemical resistance suitable for aqueous alkaline solutions, plating, and phosphate tanks. This immersion heater features rugged construction with heavy wall metal sheaths in 316 stainless steel, ensuring outstanding performance with watt densities up to 40 watts per square inch. Safety features include grounded construction, built-in thermal protector, and certifications such as cULus listed and CE compliant. With wattage options ranging from 500W to 2000W and voltages from 120V to 240V, this heater offers various sizes, voltages, and customizable configurations to meet diverse industrial heating needs.
Product Specifications
Features And Benefits Features And Benefits
SUPERIOR CHEMICAL RESISTANCE: For use in most aqueous alkaline solutions and plating and phosphate tanks. Check solution recommendation chart with your chemical supplier for proper sheath material selection.RUGGED CONSTRUCTION: Heavy wall metal sheaths available in: 304 stainless steel, 316 stainless steel and Titanium.OUTSTANDING PERFORMANCE: Watt densities up to 40 watts per square inch (6.2 w/cm2) ensure long service life.CORROSION RESISTANT HEAD: Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.SAFETY FEATURES:Grounded construction.Thermal protector built in.CERTIFICATIONS: cULus listed (except steel) and CE compliant.SIZES: 500 watts to 2,000 watts.VOLTAGES: 120 to 240 volts.OPTIONS AVAILABLESpecial configurations and lengths.Explosion resistant enclosures.Longer wire and conduit lengths.Lower watt densities for highly viscous solutions.Temperature and level controls sized to match the heater (sold separately).
Specifications Certifications
cUL US Listed
Specifications Manufacturer
Process Technology
Specifications Material
316 Stainless Steel
Specifications Overall Length
14 " | 356 mm
Specifications Phase
Single
Specifications Shipping Weight
14.0 Pound
Specifications Volts
120 V
Specifications Watts
1500 W
Specifications Weight
14.0 lbs | 6.4 kg
