Process Technology 3HXO Series PTFE Heaters
Process Technology 3HXO Series PTFE Heaters
SKU:HEA-35447f
Powerful and safe Process Technology PTFE Heaters for industrial applications. Single or three-phase, 9000W with various thermal protection options. CE and UL Listed.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Process Technology 3HXO Series PTFE Heaters
$799.99
Quantity: 1
Claim Your Seller Account
Process Technology 3HXO Series PTFE Heaters
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Process Technology 3HXO Series Multi Element Fluoropolymer (PTFE) Heaters are engineered for exceptional performance in demanding industrial settings. With a power output of 9000W and versatile thermal overload protection options, these heaters are designed for efficiency and safety. The choice between single and three-phase options ensures compatibility with various electrical systems. Featuring high-quality PTFE material and a range of certifications including CE and UL Listed, these heaters deliver reliable heat transfer for a wide range of solutions. Guards, available separately, offer enhanced protection, with PTFE guards recommended for corrosive substances and high-temperature applications.
Product Specifications
Specifications Certifications
CE | UL Listed
Specifications Element Type
Multi Element
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
3HXO13-16-23G

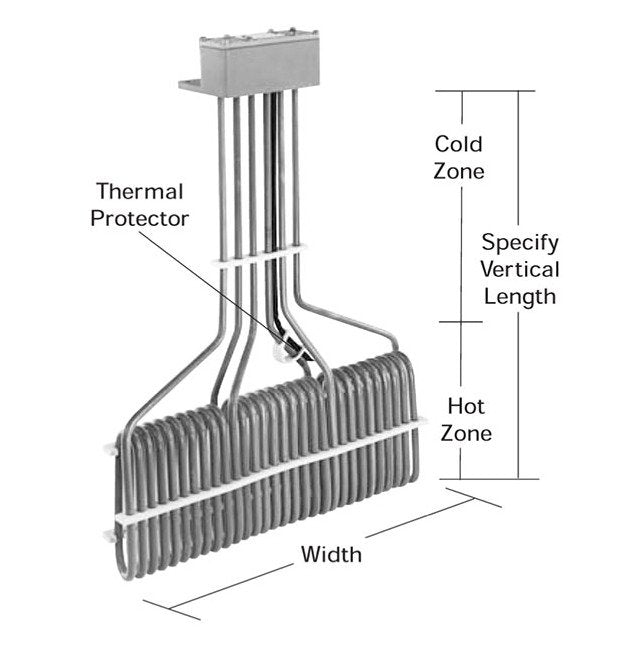

Specifications Hot Zone
16 " | 406 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Max Cold Zone
35 " | 889 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
23 " | 584 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
3HXO Series
Specifications Shipping Weight
36.0 Pound
Specifications Volts
240 V
Specifications Watts
9000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
36.0 lbs | 16.3 kg
Specifications Width
13 " | 330 mm
