Process Technology 6FLX Series 6" 150 LB. PTFE Flanged Heaters
Process Technology 6FLX Series 6" 150 LB. PTFE Flanged Heaters
SKU:HEA-2db5c3
Reliable Process Technology 6FLX Series 6" 150 LB. PTFE Flanged Heaters for industrial applications. Superior chemical resistance, durable construction, and safety features for peace of mind.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Process Technology 6FLX Series 6" 150 LB. PTFE Flanged Heaters
$799.99
Quantity: 1
Claim Your Seller Account
Process Technology 6FLX Series 6" 150 LB. PTFE Flanged Heaters
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

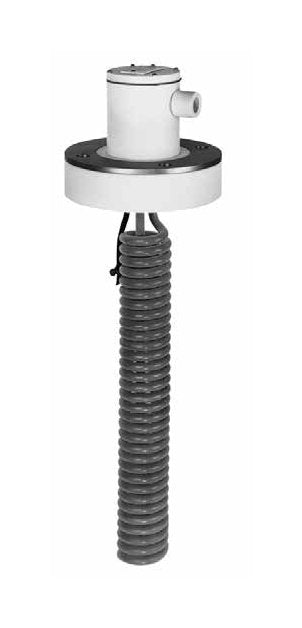

The Process Technology 6FLX Series 6" 150 LB. Style Three Element Fluoropolymer (PTFE) Flanged Heaters offer unmatched durability and performance for industrial applications. With a wattage of 6000W and voltage of 240V, these heaters come with 3 elements and a total length of 16". Designed with superior chemical resistance to aqueous solutions up to 212°F, the heavy-wall PTFE covered stainless steel element ensures longevity and reliability. The heaters feature a corrosion-resistant head, safety grounding, and a built-in thermal protector for added safety. CE certified and ranging from 1,000 to 18,000 watts, these heaters are a top choice for high-demand environments.
Product Specifications
Features And Benefits Features And Benefits
SUPERIOR CHEMICAL RESISTANCE: Inert to most aqueous acid, alkaline, anodizing and pickling solutions up to 212°F (100°C).RUGGED CONSTRUCTION: Heavy wall fluoropolymer (PTFE) covered stainless steel element reduces permeation and reduces the need for gas purge systems. Guaranteed 100% pinhole free.OUTSTANDING PERFORMANCE: Low watt density design (10 watts/square inch (1.5 w/cm2) uses minimal space and ensure long service life.CORROSION RESISTANT HEAD: Polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.SAFETY FEATURES:Grounded construction.Thermal protector built in. Resettable P2 protector standard for solutions up to 180°F (82°C).Non-floating construction.CERTIFICATIONS: CE compliant (except 600 volts).SIZES: 1,000 watts to 18,000 watts.VOLTAGES: 120 to 600 volts. 3FLX single phase only. 6FLX single or three phase.OPTIONS AVAILABLE (consult factory):P8: Type-J thermocouple for solutions up to 210°F (99°C).Special configurations and lengths.Longer wire and conduit lengths.Lower watt densities for highly viscous solutions and technical acids.Temperature and level controls sized to match the heater (sold separately).
Note Note
Gasket and bolts are not provided. Intended for horizontal installation only.
Specifications Certifications
CE
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer
Specifications Number Of Elements
3
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable Fuse (Type-J TC) thermal protector: P2: for solutions up to 190°F. | Resettable Fuse (Type-J TC) thermal protector: P8: for solutions up to 210°F.
Specifications Overall Length
16 " | 406 mm
Specifications Phase
Single | Three (Standard)
Specifications Shipping Weight
51.0 Pound
Specifications Volts
240 V
Specifications Watts
6000 W
Specifications Weight
51.0 lbs | 23.1 kg
