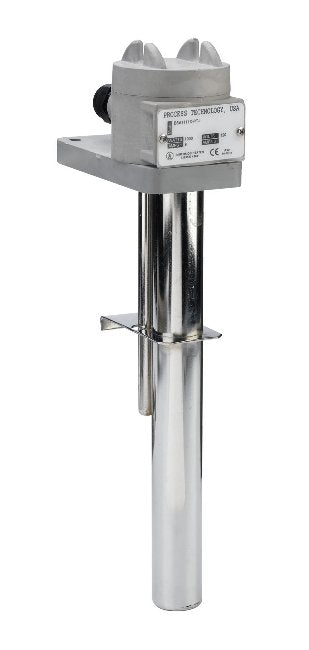

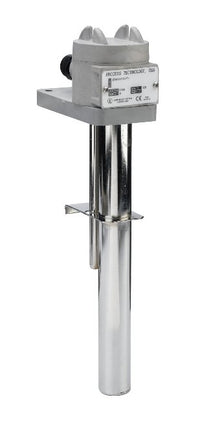

The Process Technology B Series 1-1/4" Small Tank Metal Heaters are designed for superior chemical resistance and outstanding performance in various industrial applications. These immersion heaters feature a rugged construction with heavy-duty metal sheaths available in titanium, 304 stainless steel, or 316 stainless steel. With watt densities up to 45 watts per square inch, they ensure a long service life. The heaters come with a corrosion-resistant head, thermal overload protection, and safety features like grounded construction. Certified by cUL US, these heaters offer wattage options from 500W to 1500W and voltage ranges from 120V to 415V.
Product Specifications
Features And Benefits Features And Benefits
SUPERIOR CHEMICAL RESISTANCE: For use in most aqueous alkaline solutions and plating and phosphate tanks. Check solution recommendation chart with your chemical supplier for proper sheath material selection.RUGGED CONSTRUCTION: Heavy wall metal sheaths available in: 304 stainless steel, 316 stainless steel, Titanium.OUTSTANDING PERFORMANCE: Watt densities up to 45 watts per square inch (6.9 w/cm2) ensure long service life.CORROSION RESISTANT HEAD: Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.SAFETY FEATURES:Grounded construction.Thermal protector built in. Replaceable P1 protector standard for solutions up to 180°F (82°C).Non-floating construction.CERTIFICATIONS: cULus listed (except steel) and CE compliant (except 600 volts).SIZES: 500 watts to 1,500 watts.VOLTAGES: 120 to 415 volts.OPTIONS AVAILABLE (consult factory):Replaceable thermal protectors:P4: for solutions up to 230°F (110°C).Resettable thermal protectors:P2: for solutions up to 180°F (82°C).P6: for solutions up to 230°F (110°C).Special configurations and lengths.Longer wire and conduit lengths.Lower watt densities for highly viscous solutions.Temperature and level controls sized to match the heater (sold separately).All metal welded junction box.
Options Available Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Replaceable thermal protector: P4: for solutions up to 230°F (110°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P6: for solutions up to 230°F (110°C).
Specifications Certifications
cUL US Listed
Specifications Hot Zone
5 " | 127 mm
Specifications Manufacturer
Process Technology
Specifications Material
Titanium
Specifications Overall Length
10 " | 254 mm
Specifications Phase
Single
Specifications Shipping Weight
5.0 Pound
Specifications Volts
240 V
Specifications Watts
500 W
Specifications Weight
5.0 lbs | 2.3 kg
