Process Technology B Series Small Tank Metal Heaters
Process Technology B Series Small Tank Metal Heaters
SKU:HEA-ba5167
High-performance 1500W metal heaters with superior chemical resistance and thermal protection for institutional use.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Process Technology B Series Small Tank Metal Heaters
$499.99
Quantity: 1
Claim Your Seller Account
Process Technology B Series Small Tank Metal Heaters
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

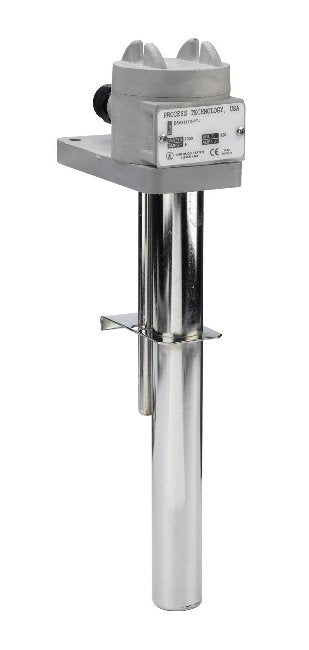

The B Series 1-1/4" Small Tank Metal Heaters are crafted from 316 Stainless Steel, delivering 1500W at 120V. Designed with thermal overload protection, these heaters boast superior chemical resistance for aqueous alkaline solutions and exemplary performance with watt densities up to 45 watts per square inch. Featuring a corrosion-resistant head, grounded construction, and certifications including cULus listing and CE compliance, these heaters offer safety and durability. With options for replaceable and resettable thermal protectors, various sizes, and voltages, they cater to diverse applications in institutional settings.
Product Specifications
Features And Benefits Features And Benefits
SUPERIOR CHEMICAL RESISTANCE: For use in most aqueous alkaline solutions and plating and phosphate tanks. Check solution recommendation chart with your chemical supplier for proper sheath material selection.RUGGED CONSTRUCTION: Heavy wall metal sheaths available in: 304 stainless steel, 316 stainless steel, Titanium.OUTSTANDING PERFORMANCE: Watt densities up to 45 watts per square inch (6.9 w/cm2) ensure long service life.CORROSION RESISTANT HEAD: Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.SAFETY FEATURES:Grounded construction.Thermal protector built in. Replaceable P1 protector standard for solutions up to 180°F (82°C).Non-floating construction.CERTIFICATIONS: cULus listed (except steel) and CE compliant (except 600 volts).SIZES: 500 watts to 1,500 watts.VOLTAGES: 120 to 415 volts.OPTIONS AVAILABLE (consult factory):Replaceable thermal protectors:P4: for solutions up to 230°F (110°C).Resettable thermal protectors:P2: for solutions up to 180°F (82°C).P6: for solutions up to 230°F (110°C).Special configurations and lengths.Longer wire and conduit lengths.Lower watt densities for highly viscous solutions.Temperature and level controls sized to match the heater (sold separately).All metal welded junction box.
Options Available Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Replaceable thermal protector: P4: for solutions up to 230°F (110°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P6: for solutions up to 230°F (110°C).
Specifications Certifications
cUL US Listed
Specifications Hot Zone
11 " | 279 mm
Specifications Manufacturer
Process Technology
Specifications Material
316 Stainless Steel
Specifications Overall Length
17 " | 432 mm
Specifications Phase
Single
Specifications Shipping Weight
8.0 Pound
Specifications Volts
120 V
Specifications Watts
1500 W
Specifications Weight
8.0 lbs | 3.6 kg
