Process Technology B Series Titanium Small Tank Heater 1-1/4"
Process Technology B Series Titanium Small Tank Heater 1-1/4"
SKU:HEA-cb5c37
Reliable B Series Titanium Heater for superior chemical resistance and exceptional performance in aqueous solutions. Safety ensured with built-in thermal protection.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Process Technology B Series Titanium Small Tank Heater 1-1/4"
$299.99
Quantity: 1
Claim Your Seller Account
Process Technology B Series Titanium Small Tank Heater 1-1/4"
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

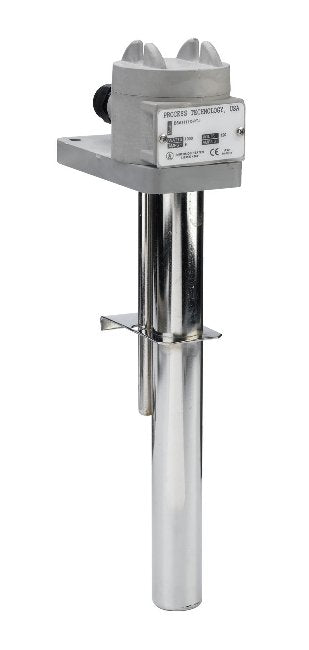

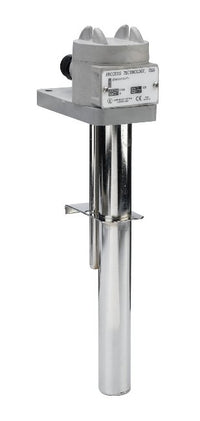

The Process Technology B Series 1-1/4" Small Tank Metal Heater is a reliable heating solution designed for single-phase operation with superior chemical resistance in aqueous alkaline solutions, plating, and phosphate tanks. With a heavy-duty construction featuring Titanium material, this heater offers exceptional performance with watt densities up to 45 watts per square inch for an extended service life. Equipped with a replaceable thermal protector and corrosion-resistant head, this heater ensures safety with grounded construction and a built-in thermal protector. It is cULus listed and CE compliant, available in wattages ranging from 500 to 1500 watts at voltages of 120 to 415 volts, making it a versatile choice for various applications.
Product Specifications
Features And Benefits Features And Benefits
SUPERIOR CHEMICAL RESISTANCE: For use in most aqueous alkaline solutions and plating and phosphate tanks. Check solution recommendation chart with your chemical supplier for proper sheath material selection.RUGGED CONSTRUCTION: Heavy wall metal sheaths available in: 304 stainless steel, 316 stainless steel, Titanium.OUTSTANDING PERFORMANCE: Watt densities up to 45 watts per square inch (6.9 w/cm2) ensure long service life.CORROSION RESISTANT HEAD: Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.SAFETY FEATURES:Grounded construction.Thermal protector built in. Replaceable P1 protector standard for solutions up to 180°F (82°C).Non-floating construction.CERTIFICATIONS: cULus listed (except steel) and CE compliant (except 600 volts).SIZES: 500 watts to 1,500 watts.VOLTAGES: 120 to 415 volts.OPTIONS AVAILABLE (consult factory):Replaceable thermal protectors:P4: for solutions up to 230°F (110°C).Resettable thermal protectors:P2: for solutions up to 180°F (82°C).P6: for solutions up to 230°F (110°C).Special configurations and lengths.Longer wire and conduit lengths.Lower watt densities for highly viscous solutions.Temperature and level controls sized to match the heater (sold separately).All metal welded junction box.
Options Available Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Replaceable thermal protector: P4: for solutions up to 230°F (110°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P6: for solutions up to 230°F (110°C).
Specifications Certifications
cUL US Listed
Specifications Hot Zone
5 " | 127 mm
Specifications Manufacturer
Process Technology
Specifications Material
Titanium
Specifications Overall Length
10 " | 254 mm
Specifications Phase
Single
Specifications Shipping Weight
5.0 Pound
Specifications Volts
120 V
Specifications Watts
500 W
Specifications Weight
5.0 lbs | 2.3 kg
