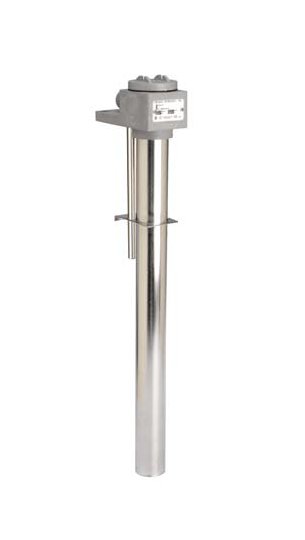

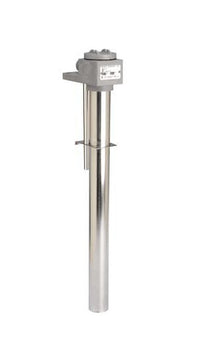

The Process Technology D Series Derated Metal Immersion Heater is a durable solution designed for industrial applications. Constructed with 316 Stainless Steel, this heater delivers 2500W at 480V with a hot zone of 25" and an overall length of 35". It offers superior chemical resistance, rugged construction, and outstanding performance due to low watt densities. Safety features include a corrosion-resistant head, grounded construction, and built-in thermal protectors. With certifications including cUL US Listed, this heater ensures reliability and longevity in diverse operational environments.
Product Specifications
Features And Benefits Features And Benefits
SUPERIOR CHEMICAL RESISTANCE:For use in most aqueous alkaline solutions, and plating and phosphate tanks. Check solution recommendation chart with your chemical supplier for proper sheath material selection.RUGGED CONSTRUCTION: Heavy wall metal sheaths available in: steel, 304 stainless steel, 316 stainless steel, titanium.OUTSTANDING PERFORMANCE: Low watt densities of 18 watts per square inch (2.8 w/cm2) ensure long service life.CORROSION RESISTANT HEAD: Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.SAFETY FEATURES:Grounded construction.Thermal protector built in. Replaceable P1 protector standard for solutions up to 180°F (82°C).Non-floating construction.CERTIFICATIONS:cULus listed (except steel) and CE compliant (except 600 volts).SIZES: 500 watts to 6,000 watts.VOLTAGES: 120 to 600 volts.OPTIONS AVAILABLE (consult factory):Replaceable thermal protectors:P4: for solutions up to 230°F (110°C)P5: for solutions up to 300°F (149°C)Resettable thermal protectors:P2: for solutions up to 180°F (82°C).P6: for solutions up to 230°F (110°C)P7: for solutions up to 300°F (149°C)Special configurations and lengths.Longer wire and conduit lengths.Lower watt densities for highly viscous solutions.Temperature and level controls sized to match the heater (sold separately).All metal welded junction box.
Options Available Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Replaceable thermal protector: P4: for solutions up to 230°F (110°C). | Replaceable thermal protector: P5: for solutions up to 300°F (149°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P6: for solutions up to 230°F (110°C). | Resettable thermal protector: P7: for solutions up to 300°F (149°C).
Specifications Certifications
cUL US Listed
Specifications Hot Zone
25 " | 635 mm
Specifications Manufacturer
Process Technology
Specifications Material
316 Stainless Steel
Specifications Overall Length
35 " | 889 mm
Specifications Phase Available
Single (Standard) | Three
Specifications Shipping Weight
15.0 Pound
Specifications Volts
480 V
Specifications Watts
2500 W
Specifications Weight
15.0 lbs | 6.8 kg
