Process Technology D Series Metal Heaters
Process Technology D Series Metal Heaters
SKU:HEA-32d960
High-performance 304 Stainless Steel Metal Heaters for superior chemical resistance. Certifications: cULus Listed, CE Compliant. Various wattages and voltages available.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Process Technology D Series Metal Heaters
$399.99
Quantity: 1
Claim Your Seller Account
Process Technology D Series Metal Heaters
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

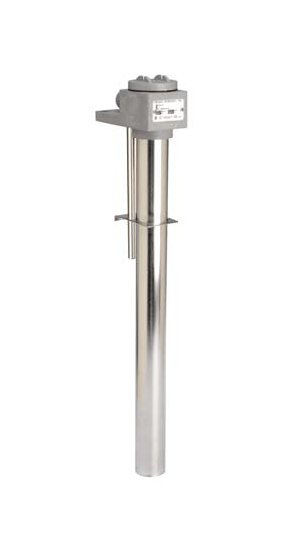

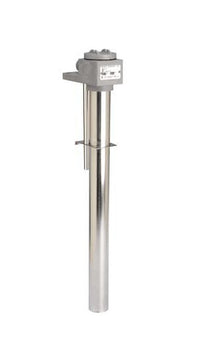

The Process Technology D Series Derated Metal Heaters are crafted from durable 304 Stainless Steel, delivering 500W at 120V for reliable performance. With a 6" hot zone and 11" overall length, these heaters provide outstanding chemical resistance for aqueous alkaline solutions. Featuring replaceable and resettable thermal protectors, corrosion-resistant construction, and safety features like a built-in thermal protector and grounded design, these heaters ensure long-lasting, safe operation. Certified cUL US Listed, they range from 500 to 6,000 watts with multiple voltage options and customizable thermal protector configurations.
Product Specifications
Features And Benefits Features And Benefits
SUPERIOR CHEMICAL RESISTANCE:For use in most aqueous alkaline solutions, and plating and phosphate tanks. Check solution recommendation chart with your chemical supplier for proper sheath material selection.RUGGED CONSTRUCTION: Heavy wall metal sheaths available in: steel, 304 stainless steel, 316 stainless steel, titanium.OUTSTANDING PERFORMANCE: Low watt densities of 18 watts per square inch (2.8 w/cm2) ensure long service life.CORROSION RESISTANT HEAD: Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.SAFETY FEATURES:Grounded construction.Thermal protector built in. Replaceable P1 protector standard for solutions up to 180°F (82°C).Non-floating construction.CERTIFICATIONS:cULus listed (except steel) and CE compliant (except 600 volts).SIZES: 500 watts to 6,000 watts.VOLTAGES: 120 to 600 volts.OPTIONS AVAILABLE (consult factory):Replaceable thermal protectors:P4: for solutions up to 230°F (110°C)P5: for solutions up to 300°F (149°C)Resettable thermal protectors:P2: for solutions up to 180°F (82°C).P6: for solutions up to 230°F (110°C)P7: for solutions up to 300°F (149°C)Special configurations and lengths.Longer wire and conduit lengths.Lower watt densities for highly viscous solutions.Temperature and level controls sized to match the heater (sold separately).All metal welded junction box.
Options Available Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Replaceable thermal protector: P4: for solutions up to 230°F (110°C). | Replaceable thermal protector: P5: for solutions up to 300°F (149°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P6: for solutions up to 230°F (110°C). | Resettable thermal protector: P7: for solutions up to 300°F (149°C).
Specifications Certifications
cUL US Listed
Specifications Hot Zone
6 " | 152 mm
Specifications Manufacturer
Process Technology
Specifications Material
304 Stainless Steel
Specifications Overall Length
11 " | 279 mm
Specifications Phase Available
Single (Standard) | Three
Specifications Shipping Weight
7.0 Pound
Specifications Volts
120 V
Specifications Watts
500 W
Specifications Weight
7.0 lbs | 3.2 kg
