Process Technology DAS Series Phosphate Heaters - 4000W, 240V
Process Technology DAS Series Phosphate Heaters - 4000W, 240V
SKU:HEA-8a8ece
Specially designed for phosphate tank applications with superior chemical resistance and outstanding performance. Sizes from 1,000W to 10,000W.
Regular price
$549.99
Regular price
Sale price
$549.99
Unit price
per
Initiate Order
Process Technology DAS Series Phosphate Heaters - 4000W, 240V
$549.99
Quantity: 1
Claim Your Seller Account
Process Technology DAS Series Phosphate Heaters - 4000W, 240V
$549.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Process Technology DAS Series Phosphate Heaters are specially designed for iron, zinc, and manganese phosphate tank applications. With superior chemical resistance and extremely rugged construction including a corrosion-resistant head, these heaters offer outstanding performance with low watt densities to minimize scaling. Safety features like grounded construction and a built-in thermal protector ensure safe operation. Available in a range of sizes and voltages, these heaters are ideal for industrial settings requiring reliability and efficiency.
Product Specifications
Specifications Certifications
CE
Specifications Features And Benefits
SUPERIOR CHEMICAL RESISTANCE: For use in iron, zinc and manganese phosphate tanks.EXTREMELY RUGGED CONSTRUCTION: Schedule 40, heavy wall, 316 stainless steel sheath withstands scaling better than traditional heaters.OUTSTANDING PERFORMANCE: Low watt densities of 23 watts per square inch (3.5 w/cm2) helps to minimize scaling while only utilizing the space required for a full watt density heater.CORROSION RESISTANT HEAD: Rugged cast steel terminal enclosure with 3-foot (.9m) flexible PVC liquid tight conduit.SAFETY FEATURES:Grounded construction.Thermal protector built in. Replaceable P4 protector standard for solutions up to 230°F (110°C).Non-floating construction.CERTIFICATIONS: CE (except 600 volts).SIZES: 1,000 watts to 10,000 watts.VOLTAGES: 120 to 600 volts. Single phase standard, three phase available.OPTIONS AVAILABLE (consult factory):Thermal protectors: Replaceable high temperature fuses or resettable P2 bi-metal switches in two temperature ranges.Special configurations and lengths.Longer wire and conduit lengths.Temperature and level controls sized to match the heater.

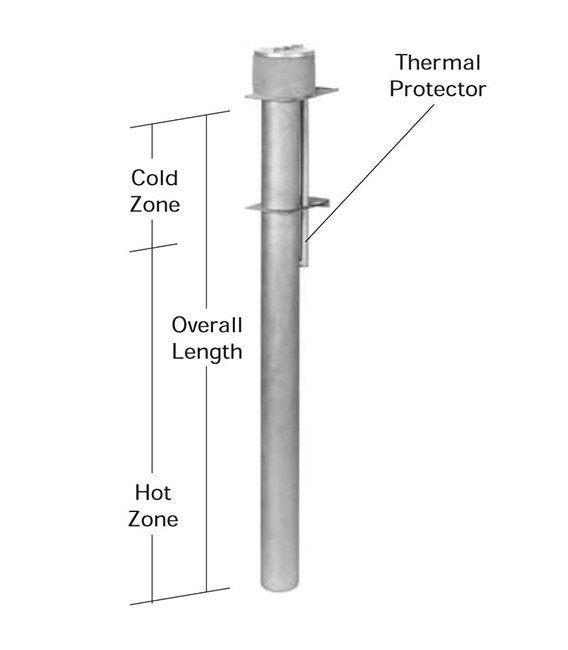

Specifications Hot Zone
28 " | 710 mm
Specifications Manufacturer
Process Technology
Specifications Material
Phosphate
Specifications Note
NOTE: Do not use in any aluminum reactive alkaline solutions.
Specifications Overall Length
35 " | 890 mm
Specifications Phase
Single (Standard) | Three
Specifications Series
DAS Series
Specifications Shipping Weight
36.0 Pound
Specifications Volts
240 V
Specifications Watts
4000 W
Specifications Weight
36.0 lbs | 16.0 kg
