Process Technology DAS Series Phosphate Heaters
Process Technology DAS Series Phosphate Heaters
SKU:HEA-e14487
High-performance DAS Series Phosphate Heaters for iron, zinc, and manganese phosphate tanks. Safety certified and corrosion-resistant.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Process Technology DAS Series Phosphate Heaters
$299.99
Quantity: 1
Claim Your Seller Account
Process Technology DAS Series Phosphate Heaters
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Process Technology DAS Series Phosphate Heaters are expertly designed for iron, zinc, and manganese phosphate tanks, ensuring superior chemical resistance. Constructed with heavy-duty 316 stainless steel sheath, these heaters offer outstanding performance with low watt densities to minimize scaling. Featuring a corrosion-resistant head and essential safety features like a built-in thermal protector, these heaters are grounded and CE certified. With options ranging from 1,000 to 10,000 watts and voltages from 120 to 600 volts, they are customizable to suit various requirements, making them ideal for institutional and government buyers in need of reliable, compliant heating solutions.
Product Specifications
Specifications Certifications
CE
Specifications Features And Benefits
SUPERIOR CHEMICAL RESISTANCE: For use in iron, zinc and manganese phosphate tanks.EXTREMELY RUGGED CONSTRUCTION: Schedule 40, heavy wall, 316 stainless steel sheath withstands scaling better than traditional heaters.OUTSTANDING PERFORMANCE: Low watt densities of 23 watts per square inch (3.5 w/cm2) helps to minimize scaling while only utilizing the space required for a full watt density heater.CORROSION RESISTANT HEAD: Rugged cast steel terminal enclosure with 3-foot (.9m) flexible PVC liquid tight conduit.SAFETY FEATURES:Grounded construction.Thermal protector built in. Replaceable P4 protector standard for solutions up to 230°F (110°C).Non-floating construction.CERTIFICATIONS: CE (except 600 volts).SIZES: 1,000 watts to 10,000 watts.VOLTAGES: 120 to 600 volts. Single phase standard, three phase available.OPTIONS AVAILABLE (consult factory):Thermal protectors: Replaceable high temperature fuses or resettable P2 bi-metal switches in two temperature ranges.Special configurations and lengths.Longer wire and conduit lengths.Temperature and level controls sized to match the heater.

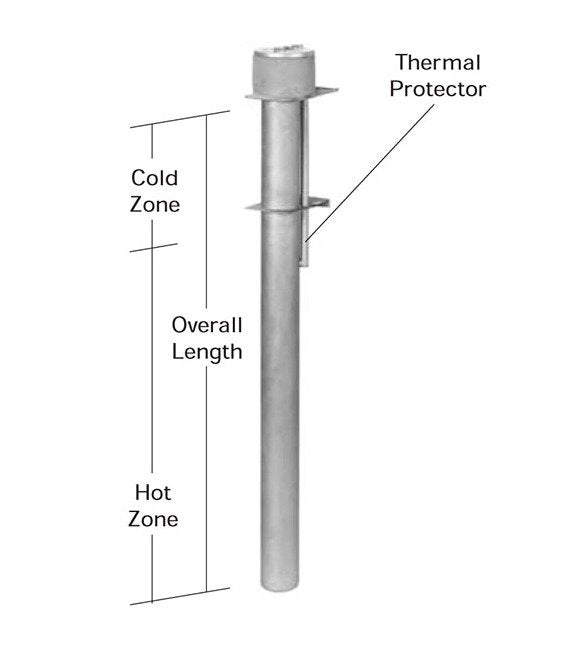

Specifications Hot Zone
7 " | 180 mm
Specifications Manufacturer
Process Technology
Specifications Material
Phosphate
Specifications Note
NOTE: Do not use in any aluminum reactive alkaline solutions.
Specifications Overall Length
11 " | 280 mm
Specifications Phase
Single (Standard) | Three
Specifications Series
DAS Series
Specifications Shipping Weight
17.0 Pound
Specifications Volts
120 V
Specifications Watts
1000 W
Specifications Weight
17.0 lbs | 8.0 kg
