Process Technology DAS Series Phosphate Heaters
Process Technology DAS Series Phosphate Heaters
SKU:HEA-41189b
Rugged and chemically resistant heaters for phosphate tanks, CE certified.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Process Technology DAS Series Phosphate Heaters
$499.99
Quantity: 1
Claim Your Seller Account
Process Technology DAS Series Phosphate Heaters
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

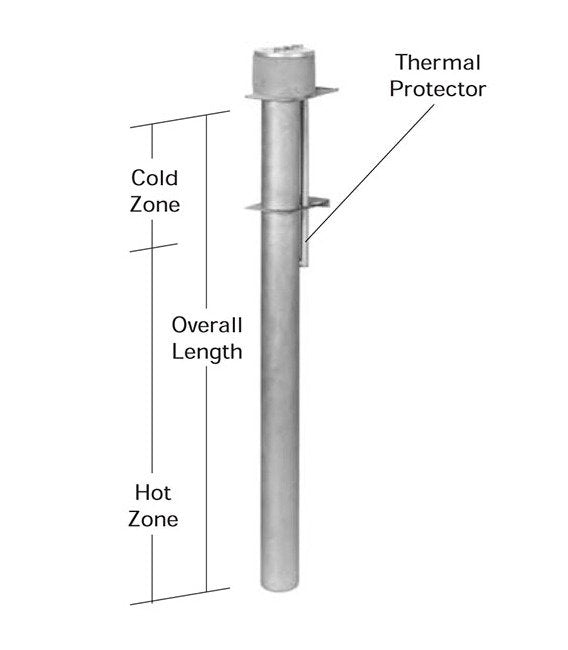

The Process Technology DAS Series Phosphate Heaters are designed for iron, zinc, and manganese phosphate tank applications, offering superior chemical resistance and rugged construction. With low watt densities to minimize scaling, these heaters feature a corrosion-resistant head and built-in thermal protector for safety. Certified with CE, available in various wattages and voltages, these heaters provide outstanding performance coupled with durability, making them ideal for institutional and industrial settings.
Product Specifications
Specifications Certifications
CE
Specifications Features And Benefits
SUPERIOR CHEMICAL RESISTANCE: For use in iron, zinc and manganese phosphate tanks.EXTREMELY RUGGED CONSTRUCTION: Schedule 40, heavy wall, 316 stainless steel sheath withstands scaling better than traditional heaters.OUTSTANDING PERFORMANCE: Low watt densities of 23 watts per square inch (3.5 w/cm2) helps to minimize scaling while only utilizing the space required for a full watt density heater.CORROSION RESISTANT HEAD: Rugged cast steel terminal enclosure with 3-foot (.9m) flexible PVC liquid tight conduit.SAFETY FEATURES:Grounded construction.Thermal protector built in. Replaceable P4 protector standard for solutions up to 230°F (110°C).Non-floating construction.CERTIFICATIONS: CE (except 600 volts).SIZES: 1,000 watts to 10,000 watts.VOLTAGES: 120 to 600 volts. Single phase standard, three phase available.OPTIONS AVAILABLE (consult factory):Thermal protectors: Replaceable high temperature fuses or resettable P2 bi-metal switches in two temperature ranges.Special configurations and lengths.Longer wire and conduit lengths.Temperature and level controls sized to match the heater.
Specifications Hot Zone
18 " | 460 mm
Specifications Manufacturer
Process Technology
Specifications Material
Phosphate
Specifications Note
NOTE: Do not use in any aluminum reactive alkaline solutions.
Specifications Overall Length
23 " | 585 mm
Specifications Phase
Single (Standard) | Three
Specifications Series
DAS Series
Specifications Shipping Weight
24.0 Pound
Specifications Volts
480 V
Specifications Watts
3000 W
Specifications Weight
24.0 lbs | 11.0 kg
