Process Technology HX Series PTFE Heaters
Process Technology HX Series PTFE Heaters
SKU:HEA-e01c16
Powerful and durable PTFE heaters for industrial applications. 5000W, 10 W/in². CE, CSA, UL certified.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Process Technology HX Series PTFE Heaters
$899.99
Quantity: 1
Claim Your Seller Account
Process Technology HX Series PTFE Heaters
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

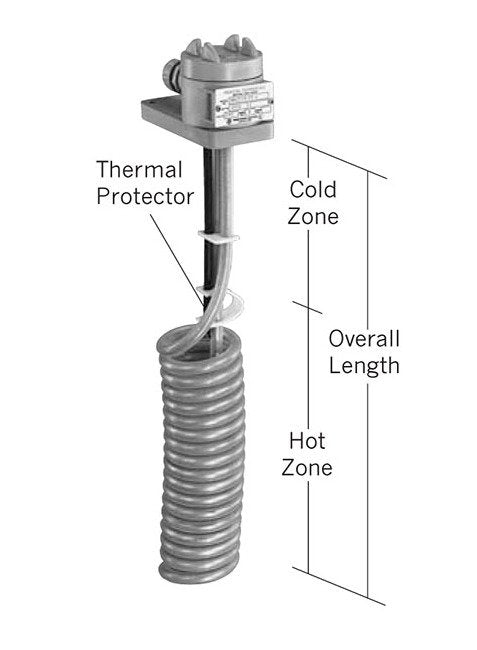

The Process Technology HX Series Spiral Fluoropolymer (PTFE) Heaters are meticulously crafted for exceptional performance in industrial settings. With a power output of 5000W and a watt density of 10 W/in², these heaters are designed for efficiency and durability. The hot zone extends 25" (635 mm) with flexible risers available for customization. Equipped with various thermal protectors and certified by CE, CSA, and UL, these single-phase heaters ensure superior safety and reliability. Ideal for applications requiring resistance to high temperatures and chemicals, these heaters deliver precision heating solutions.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).GUARDS SOLD SEPARATELY
Specifications Guard Model Number
HX/3HX35G
Specifications Hot Zone
25 " | 635 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer
Specifications Max Cold Zone
36 " | 914 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
35 " | 889 mm
Specifications Phase
Single
Specifications Series
HX Series
Specifications Shipping Weight
18.0 Pound
Specifications Std Cold Zone
10 " | 255 mm
Specifications Volts
480 V
Specifications Watts
5000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
18.0 lbs | 8.2 kg
