Process Technology HX Series PTFE Heaters - 8000W, 240V
Process Technology HX Series PTFE Heaters - 8000W, 240V
SKU:HEA-37964c
Enhance your operations with Process Technology HX Series PTFE Heaters, ideal for industrial heating applications. 8000W, 240V.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Process Technology HX Series PTFE Heaters - 8000W, 240V
$799.99
Quantity: 1
Claim Your Seller Account
Process Technology HX Series PTFE Heaters - 8000W, 240V
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

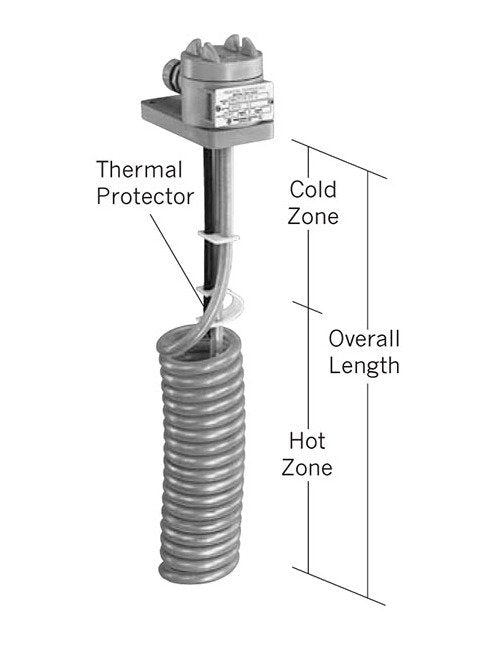

The Process Technology HX Series Spiral Fluoropolymer (PTFE) Heaters are meticulously designed for efficient heating solutions in diverse industrial settings. With a power output of 8000 watts and a watt density of 10 W/in², these heaters offer reliable performance. They feature a robust construction using fluoropolymer material, ensuring durability and resistance to corrosive elements. The heaters come with various safety options, including thermal protectors for different temperature ranges. Certified by CE, CSA, and UL, these heaters meet stringent quality standards, making them ideal for commercial, institutional, and government procurement needs.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).GUARDS SOLD SEPARATELY
Specifications Guard Model Number
HX/3HX47G
Specifications Hot Zone
37 " | 940 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer
Specifications Max Cold Zone
32 " | 813 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
47 " | 1194 mm
Specifications Phase
Single
Specifications Series
HX Series
Specifications Shipping Weight
25.0 Pound
Specifications Std Cold Zone
10 " | 255 mm
Specifications Volts
240 V
Specifications Watts
8000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
25.0 lbs | 11.3 kg
