Process Technology HXF Fluoropolymer Heaters
Process Technology HXF Fluoropolymer Heaters
SKU:HEA-12f0c0
High-performance HXF Fluoropolymer Heaters for precise industrial heating. Certified for safety and durability.
Regular price
$259.99
Regular price
Sale price
$259.99
Unit price
per
Initiate Order
Process Technology HXF Fluoropolymer Heaters
$259.99
Quantity: 1
Claim Your Seller Account
Process Technology HXF Fluoropolymer Heaters
$259.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

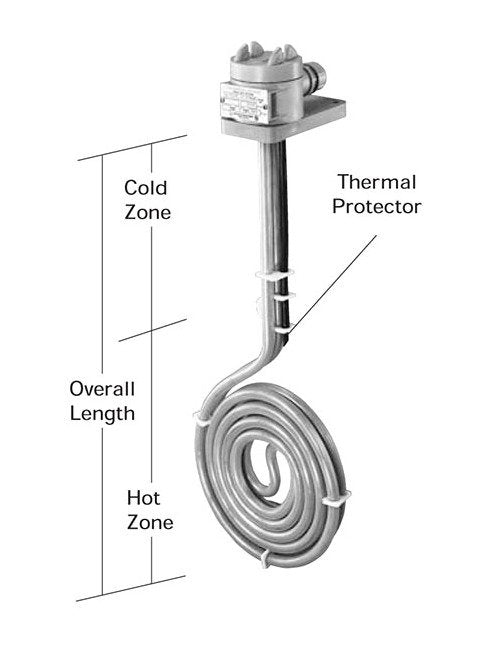

The Process Technology HXF Series Low Profile Fluoropolymer (PTFE) Heaters offer reliable and efficient heating solutions for industrial applications. With 500W power, 240V voltage, and a 6" hot zone, these heaters are designed for precision and performance. Recommended for solutions up to 180°F, these heaters come with multiple thermal protector options to ensure safety. Certified by CE, CSA, and UL, they boast a stainless steel sheath construction with a ground wire for enhanced durability and compliance.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Construction
Ground wire is welded to stainless steel sheath.
Specifications Diameter
5 " | 127 mm
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXF05-14G
Specifications Hot Zone
6 " | 152 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer
Specifications Max Cold Zone
36 " | 914 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
14 " | 356 mm
Specifications Phase
Single
Specifications Series
HXF Series
Specifications Shipping Weight
6.0 Pound
Specifications Std Cold Zone
8 " | 203 mm
Specifications Volts
240 V
Specifications Watts
500 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
6.0 lbs | 2.7 kg
