The Process Technology HXF Series Low Profile Fluoropolymer (PTFE) Heaters are designed for efficient heating with 2000W capacity, featuring a watt density of 10 W/in², making them ideal for industrial applications. These heaters come with options for replaceable and resettable thermal protectors, ensuring safe operation up to 250°F. With certifications such as CE, CSA, and UL Listed, these heaters guarantee high-quality performance and safety compliance.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Construction
Ground wire is welded to stainless steel sheath.
Specifications Diameter
8 " | 203 mm
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXF08-17G

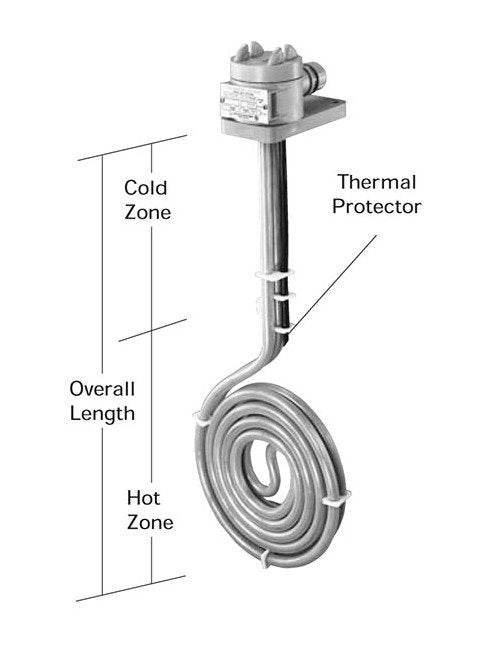

Specifications Hot Zone
9 " | 229 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer
Specifications Max Cold Zone
35 " | 889 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
17 " | 432 mm
Specifications Phase
Single
Specifications Series
HXF Series
Specifications Shipping Weight
8.0 Pound
Specifications Std Cold Zone
8 " | 203 mm
Specifications Volts
120 V
Specifications Watts
2000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
8.0 lbs | 3.6 kg
