The Process Technology HXF Series Low Profile Fluoropolymer (PTFE) Heaters are designed for efficient and reliable heating in industrial applications. With a power output of 6000W and a volt rating of 480V, these heaters feature a Watt Density of 10 W/in², ensuring uniform heat distribution. The Fluoropolymer construction makes them ideal for corrosive environments. Standard with replaceable thermal protectors and optional guards for different chemical solutions, these heaters prioritize safety and functionality. Certified by CE, CSA, and UL, these heaters meet stringent industry standards for quality and performance.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Construction
Ground wire is welded to stainless steel sheath.
Specifications Diameter
13 " | 330 mm
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXF13-40G

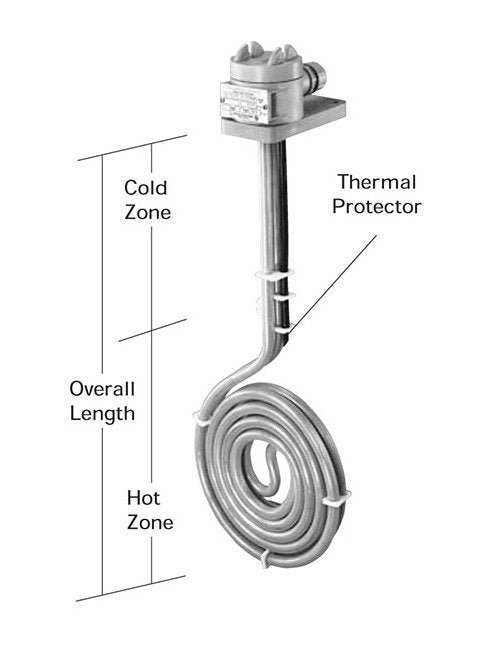

Specifications Hot Zone
14 " | 356 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer
Specifications Max Cold Zone
25 " | 635 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
40 " | 1016 mm
Specifications Phase
Single
Specifications Series
HXF Series
Specifications Shipping Weight
22.0 Pound
Specifications Std Cold Zone
26 " | 660 mm
Specifications Volts
480 V
Specifications Watts
6000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
22.0 lbs | 10.0 kg
