Process Technology HXF Series Fluoropolymer Heaters
Process Technology HXF Series Fluoropolymer Heaters
SKU:HEA-c9e454
Efficient and reliable, the HXF Series Fluoropolymer Heaters by Process Technology offer precision heating with multiple safety features.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Process Technology HXF Series Fluoropolymer Heaters
$899.99
Quantity: 1
Claim Your Seller Account
Process Technology HXF Series Fluoropolymer Heaters
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

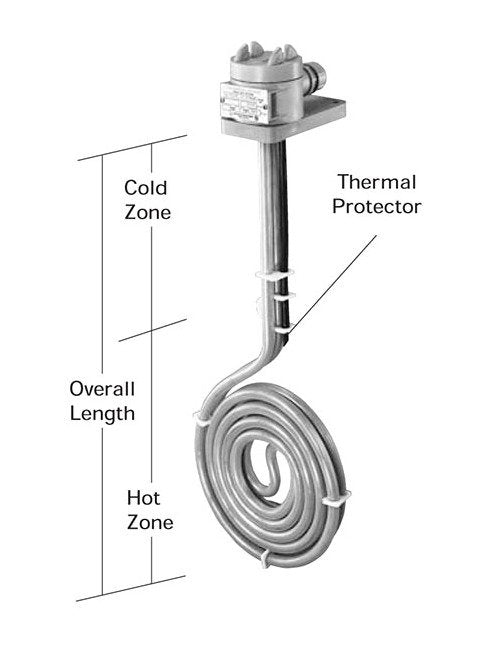

The Process Technology HXF Series Fluoropolymer (PTFE) Heaters are designed for efficient heating in various applications. With a power output of 6000W and a watt density of 10 W/in², these heaters operate at 240V to provide reliable performance. Featuring a 14" hot zone and durable construction with a fluoropolymer material, these single-phase heaters come with multiple thermal protector options for different solution temperatures. Recommended guards ensure safety, with certifications including CE, CSA, and UL Listed for quality assurance.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Construction
Ground wire is welded to stainless steel sheath.
Specifications Diameter
13 " | 330 mm
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXF13-40G
Specifications Hot Zone
14 " | 356 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer
Specifications Max Cold Zone
25 " | 635 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
40 " | 1016 mm
Specifications Phase
Single
Specifications Series
HXF Series
Specifications Shipping Weight
22.0 Pound
Specifications Std Cold Zone
26 " | 660 mm
Specifications Volts
240 V
Specifications Watts
6000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
22.0 lbs | 10.0 kg
