Process Technology HXF Series Low Profile Fluoropolymer Heaters - 500W, 120V
Process Technology HXF Series Low Profile Fluoropolymer Heaters - 500W, 120V
SKU:HEA-17b31b
Efficient 500W Process Technology Fluoropolymer Heaters with chemical resistance. CE, CSA, UL Certified.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Process Technology HXF Series Low Profile Fluoropolymer Heaters - 500W, 120V
$299.99
Quantity: 1
Claim Your Seller Account
Process Technology HXF Series Low Profile Fluoropolymer Heaters - 500W, 120V
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Process Technology HXF Series Low Profile Fluoropolymer (PTFE) Heaters are designed for precise heating applications in industrial settings. With a wattage of 500W and a watt density of 10 W/in², these heaters offer efficient and uniform heat distribution. The fluoropolymer construction ensures excellent chemical resistance, making them ideal for a wide range of solutions. Featuring standard and flexible options, these heaters are equipped with replaceable thermal protectors for added safety. Certified by CE, CSA, and UL, these heaters meet stringent quality standards for reliable performance.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Construction
Ground wire is welded to stainless steel sheath.
Specifications Diameter
5 " | 127 mm
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXF05-14G

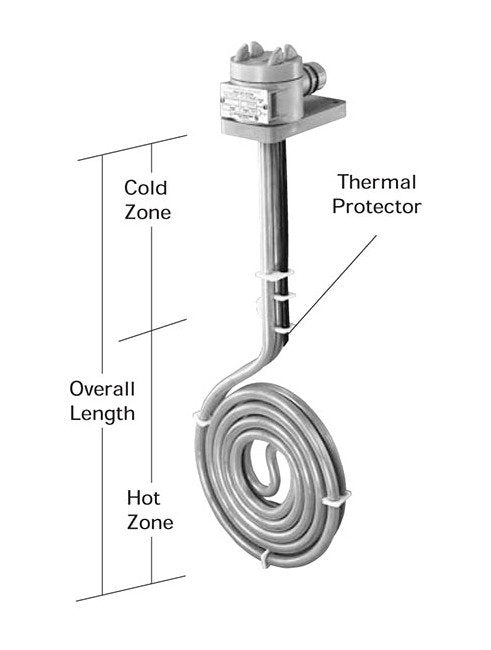

Specifications Hot Zone
6 " | 152 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer
Specifications Max Cold Zone
36 " | 914 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
14 " | 356 mm
Specifications Phase
Single
Specifications Series
HXF Series
Specifications Shipping Weight
6.0 Pound
Specifications Std Cold Zone
8 " | 203 mm
Specifications Volts
120 V
Specifications Watts
500 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
6.0 lbs | 2.7 kg
