Process Technology HXF Series PTFE Heaters
Process Technology HXF Series PTFE Heaters
SKU:HEA-74e116
Efficient single-phase HXF Series PTFE Heaters with 1000W power, durable Fluoropolymer construction, and multiple thermal protector options. CE, CSA, UL Listed.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Process Technology HXF Series PTFE Heaters
$289.99
Quantity: 1
Claim Your Seller Account
Process Technology HXF Series PTFE Heaters
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

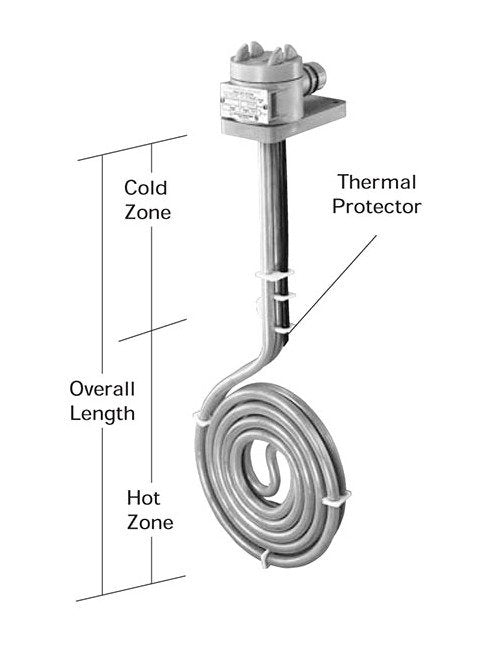

The Process Technology HXF Series Low Profile Fluoropolymer (PTFE) Heaters are designed for efficient single-phase heating applications. With a power output of 1000W and a watt density of 10 W/in², these heaters are suitable for various industrial processes. Featuring a durable Fluoropolymer construction and a stainless steel sheath with a welded ground wire, these heaters ensure reliable performance. The HXF Series Heaters come with multiple thermal protector options and are CE, CSA, and UL Listed for quality assurance.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Construction
Ground wire is welded to stainless steel sheath.
Specifications Diameter
6 " | 152 mm
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXF06-14G
Specifications Hot Zone
7 " | 178 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer
Specifications Max Cold Zone
36 " | 914 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
14 " | 356 mm
Specifications Phase
Single
Specifications Series
HXF Series
Specifications Shipping Weight
7.0 Pound
Specifications Std Cold Zone
7 " | 178 mm
Specifications Volts
240 V
Specifications Watts
1000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
7.0 lbs | 3.2 kg
