Process Technology HXF Series PTFE Heaters
Process Technology HXF Series PTFE Heaters
SKU:HEA-eaa040
Powerful 4000W Process Technology HXF PTFE Heaters with customizable guards and thermal protectors for industrial applications.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Process Technology HXF Series PTFE Heaters
$349.99
Quantity: 1
Claim Your Seller Account
Process Technology HXF Series PTFE Heaters
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

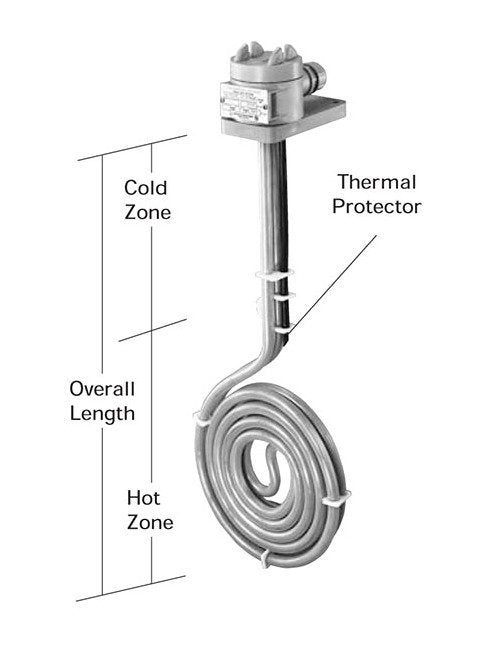

The Process Technology HXF Series Low Profile Fluoropolymer (PTFE) Heaters are designed for efficient single-phase heating applications with a robust construction featuring a fluoropolymer material and stainless steel sheath. With a power output of 4000W and various thermal protector options, these heaters ensure reliable performance. Recommended for solutions up to 180°F (82°C), the HXF Series offers customizable guard options for enhanced safety. Certified by CE, CSA, and UL, these heaters meet rigorous quality standards for industrial and institutional use. Contact us for specialized configurations and compliance details.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Construction
Ground wire is welded to stainless steel sheath.
Specifications Diameter
11 " | 279 mm
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXF11-29G
Specifications Hot Zone
12 " | 305 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer
Specifications Max Cold Zone
35 " | 889 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
29 " | 737 mm
Specifications Phase
Single
Specifications Series
HXF Series
Specifications Shipping Weight
15.0 Pound
Specifications Std Cold Zone
17 " | 432 mm
Specifications Volts
240 V
Specifications Watts
4000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
15.0 lbs | 6.8 kg
