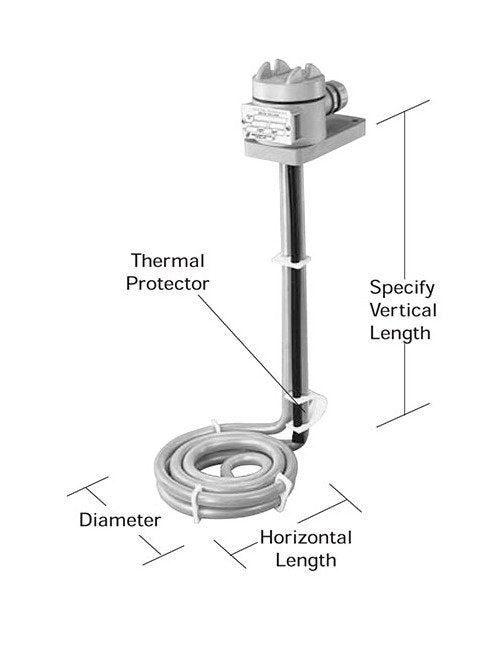

Experience top-notch heating efficiency with the Process Technology HXFL Series Low Profile L-Shaped Fluoropolymer (PTFE) Heaters. These heaters boast a watt density of 10 W/in², delivering a robust 4000 W power at 240 V. With a durable construction and replaceable thermal protectors for various solution temperatures, these heaters are versatile and reliable. Guards recommended, with option for Fluoropolymer (PTFE) guards for specific applications. Certified by CE, CSA, and UL Listed, manufactured by Process Technology.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Construction
Ground wire is welded to stainless steel sheath.
Specifications Diameter
11 " | 279 mm
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXFL11-R*G
Specifications Horizontal Length
11 " | 279 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer
Specifications Max Cold Zone
35 " | 889 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Phase
Single
Specifications Series
HXFL
Specifications Shipping Weight
15.0 Pound
Specifications Standard Vertical Length
18 " | 457 mm
Specifications Volts
240 V
Specifications Watts
4000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
15.0 lbs | 6.8 kg
