Process Technology HXFL Series Fluoropolymer Heaters
Process Technology HXFL Series Fluoropolymer Heaters
SKU:HEA-2b2fe3
Efficient Process Technology HXFL Fluoropolymer Heaters with precise heating control and thermal protection. CE, CSA, and UL Listed.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Process Technology HXFL Series Fluoropolymer Heaters
$289.99
Quantity: 1
Claim Your Seller Account
Process Technology HXFL Series Fluoropolymer Heaters
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

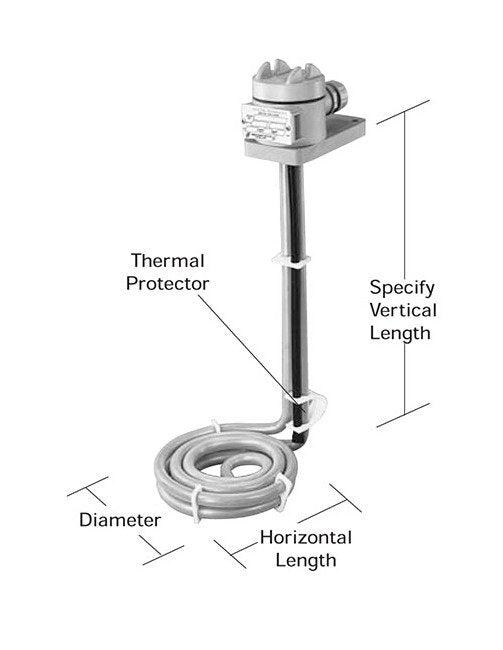

The Process Technology HXFL Series Low Profile L-Shaped Fluoropolymer (PTFE) Heaters deliver efficient and precise heating solutions for a variety of applications. With a watt density of 10 W/in², these heaters provide 2000 W of power at 240 V, ensuring reliable performance. The construction features a stainless steel sheath with a welded ground wire for enhanced safety. Additionally, these heaters come with replaceable thermal protectors to maintain optimal operating temperatures. Guards are recommended for specific chemical solutions, with options including polypropylene and PTFE guards for varying temperature ranges. This series is CE, CSA, and UL Listed, meeting stringent industry standards for quality and safety.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Construction
Ground wire is welded to stainless steel sheath.
Specifications Diameter
8 " | 203 mm
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXFL08-R*G
Specifications Horizontal Length
8 " | 203 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer
Specifications Max Cold Zone
35 " | 889 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Phase
Single
Specifications Series
HXFL
Specifications Shipping Weight
8.0 Pound
Specifications Standard Vertical Length
18 " | 457 mm
Specifications Volts
240 V
Specifications Watts
2000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
8.0 lbs | 3.6 kg
