Process Technology HXFL Series Fluoropolymer (PTFE) Immersion Heaters
Process Technology HXFL Series Fluoropolymer (PTFE) Immersion Heaters
SKU:HEA-e80b47
Efficiently heat liquids with Process Technology HXFL Series Fluoropolymer (PTFE) Immersion Heaters. Safe, reliable, and certified.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Process Technology HXFL Series Fluoropolymer (PTFE) Immersion Heaters
$399.99
Quantity: 1
Claim Your Seller Account
Process Technology HXFL Series Fluoropolymer (PTFE) Immersion Heaters
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

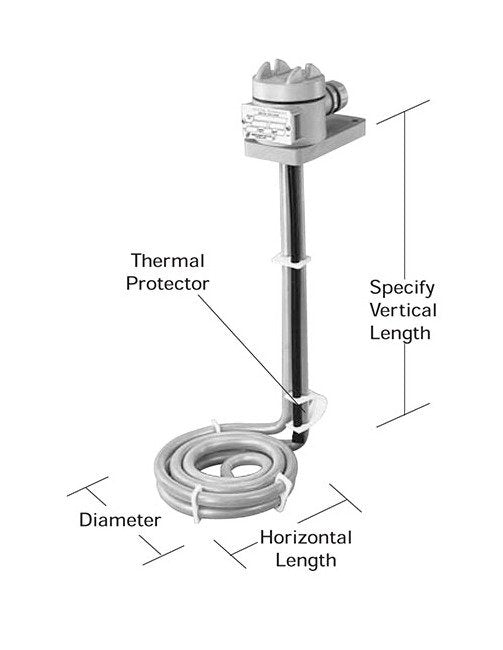

The Process Technology HXFL Series Low Profile L-Shaped Fluoropolymer (PTFE) Immersion Heaters provide reliable heating solutions for a wide range of applications. With a watt density of 10 W/in², they offer precise control and efficient performance. These heaters come in a standard vertical length of 12 inches and offer options for thermal overload protection, ensuring safety and longevity. Ideal for solutions up to 180°F, the HXFL Series is constructed with a stainless steel sheath and meets CE, CSA, and UL Listed certifications.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Construction
Ground wire is welded to stainless steel sheath.
Specifications Diameter
5 " | 127 mm
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXFL05-R*G
Specifications Horizontal Length
5 " | 127 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer
Specifications Max Cold Zone
36 " | 914 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Phase
Single
Specifications Series
HXFL
Specifications Shipping Weight
6.0 Pound
Specifications Standard Vertical Length
12 " | 305 mm
Specifications Volts
120 V
Specifications Watts
500 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
6.0 lbs | 2.7 kg
