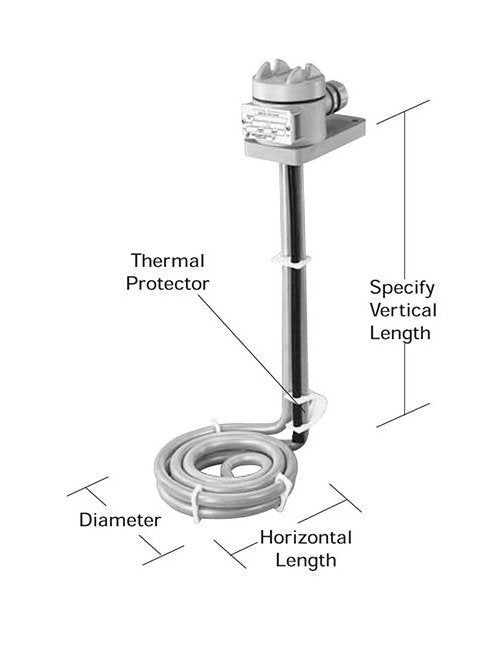

The Process Technology HXFL Series Low Profile L-Shaped Fluoropolymer (PTFE) Heaters are designed for efficient electric immersion heating in industrial applications. With a watt density of 10 W/in² and 2000 watts capacity, these heaters offer reliable and uniform heat distribution. Featuring a single-phase design and available with various thermal overload protection options, these heaters ensure safe and precise temperature control. Built with CE, CSA, and UL certifications, they meet high industry standards for quality and safety. Ideal for a wide range of solutions, these heaters come with optional guards for enhanced protection and durability.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Construction
Ground wire is welded to stainless steel sheath.
Specifications Diameter
8 " | 203 mm
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXFL08-R*G
Specifications Horizontal Length
8 " | 203 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer
Specifications Max Cold Zone
35 " | 889 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Phase
Single
Specifications Series
HXFL
Specifications Shipping Weight
8.0 Pound
Specifications Standard Vertical Length
18 " | 457 mm
Specifications Volts
480 V
Specifications Watts
2000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
8.0 lbs | 3.6 kg
