Process Technology HXFL Series PTFE Heaters
Process Technology HXFL Series PTFE Heaters
SKU:HEA-43697e
High-performance Process Technology HXFL Series PTFE Heaters with multiple thermal protector options for safe and efficient heating in solutions up to 250°F. CE, CSA, and UL certified.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Process Technology HXFL Series PTFE Heaters
$699.99
Quantity: 1
Claim Your Seller Account
Process Technology HXFL Series PTFE Heaters
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

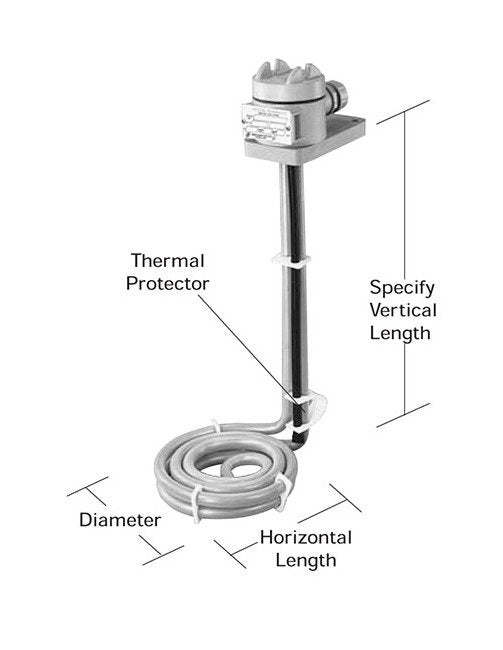

The Process Technology HXFL Series Low Profile L-Shaped Fluoropolymer (PTFE) Heaters offer exceptional performance and reliability for a wide range of heating applications. With a watt density of 10 W/in², 5000W power, and a standard 480V voltage, these heaters deliver efficient heating solutions. The single-phase design, coupled with a variety of thermal protector options, ensures safe operation in solutions up to 250°F. Constructed with a stainless steel sheath and certified by CE, CSA, and UL, these heaters are built to meet the highest industry standards. Guards recommended for specific applications for added safety.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Construction
Ground wire is welded to stainless steel sheath.
Specifications Diameter
12 " | 305 mm
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXFL12-R*G
Specifications Horizontal Length
12 " | 305 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer
Specifications Max Cold Zone
31 " | 787 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Phase
Single
Specifications Series
HXFL
Specifications Shipping Weight
18.0 Pound
Specifications Standard Vertical Length
18 " | 457 mm
Specifications Volts
480 V
Specifications Watts
5000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
18.0 lbs | 8.2 kg
