Process Technology HXO Fluoropolymer (PTFE) Heaters
Process Technology HXO Fluoropolymer (PTFE) Heaters
SKU:HEA-204fae
Efficient Process Technology HXO Fluoropolymer (PTFE) Heaters with precise thermal control, optimal for industrial applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Process Technology HXO Fluoropolymer (PTFE) Heaters
$249.99
Quantity: 1
Claim Your Seller Account
Process Technology HXO Fluoropolymer (PTFE) Heaters
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

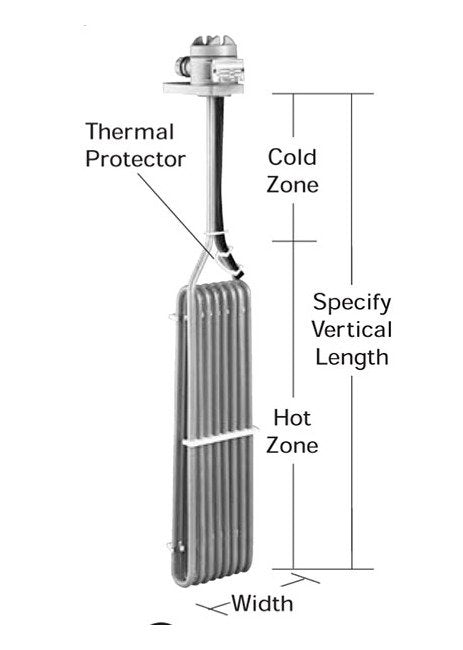

The Process Technology HXO Series Fluoropolymer (PTFE) Heaters are meticulously designed for industrial applications requiring precise thermal control. With a watt density of 10 W/in², these heaters operate at 240V and come with various thermal protector options. The heaters feature a standard polypropylene guard, while a specialized Fluoropolymer (PTFE) guard is recommended for demanding solutions like chromic acid. CE and UL Listed, these heaters ensure safety and performance excellence.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Certifications
CE | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXO06-07-11G
Specifications Hot Zone
7 " | 178 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Max Cold Zone
36 " | 914 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
11 " | 279 mm
Specifications Phase
Single
Specifications Series
HXO
Specifications Shipping Weight
7.0 Pound
Specifications Std Cold Zone
5 " | 127 mm
Specifications Volts
240 V
Specifications Watts
1000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
7.0 lbs | 3.2 kg
Specifications Width
6 " | 152 mm
