Process Technology HXO Series Fluoropolymer Heaters
Process Technology HXO Series Fluoropolymer Heaters
SKU:HEA-dfe353
Upgrade with Process Technology HXO Series PTFE Heaters, offering 10 W/in² watt density, thermal protection options, and CE/UL certifications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Process Technology HXO Series Fluoropolymer Heaters
$249.99
Quantity: 1
Claim Your Seller Account
Process Technology HXO Series Fluoropolymer Heaters
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your heating solutions with the Process Technology HXO Series Fluoropolymer (PTFE) Heaters. Designed with top-notch quality materials including PTFE guards for optimal performance in demanding environments. This electric immersion heater offers a watt density of 10 W/in², thermal overload protection, and various options to meet your specific application requirements. With CE and UL certifications, trust in Process Technology for reliable heating solutions.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Certifications
CE | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXO05-06-11G

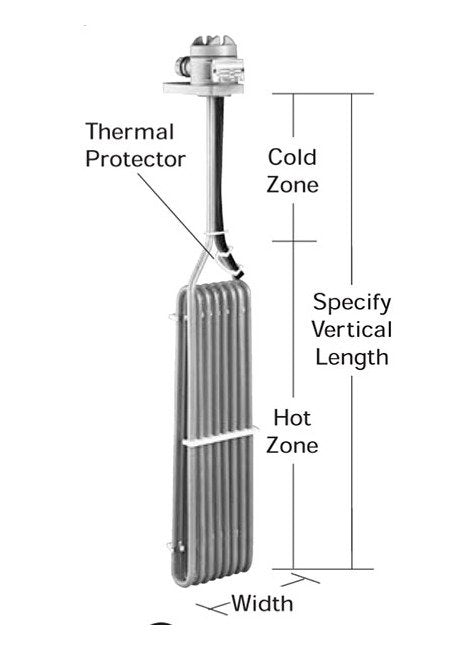

Specifications Hot Zone
6 " | 152 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Max Cold Zone
36 " | 914 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
11 " | 279 mm
Specifications Phase
Single
Specifications Series
HXO
Specifications Shipping Weight
6.0 Pound
Specifications Std Cold Zone
5 " | 127 mm
Specifications Volts
240 V
Specifications Watts
500 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
6.0 lbs | 2.7 kg
Specifications Width
5 " | 127 mm
