Process Technology HXO Series Fluoropolymer Heaters with PTFE Guards
Process Technology HXO Series Fluoropolymer Heaters with PTFE Guards
SKU:HEA-337a9b
Enhance heating efficiency with Process Technology HXO Fluoropolymer (PTFE) Heaters. Safeguarded with PTFE guards, ideal for corrosive solutions up to 250°F. CE and UL certified.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Process Technology HXO Series Fluoropolymer Heaters with PTFE Guards
$799.99
Quantity: 1
Claim Your Seller Account
Process Technology HXO Series Fluoropolymer Heaters with PTFE Guards
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your heating system with the Process Technology HXO Series Fluoropolymer (PTFE) Heaters specially designed for efficient heat transfer. These heaters feature a watt density of 10 W/in², suitable for a range of solutions. With options for replaceable and resettable thermal protectors up to 250°F, these heaters ensure safe operation. The included PTFE guards provide added protection, ideal for corrosive environments. Certified by CE and UL, these heaters meet stringent safety standards, making them a reliable choice for industrial applications.
Product Specifications
Specifications Certifications
CE | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXO06-19-29G

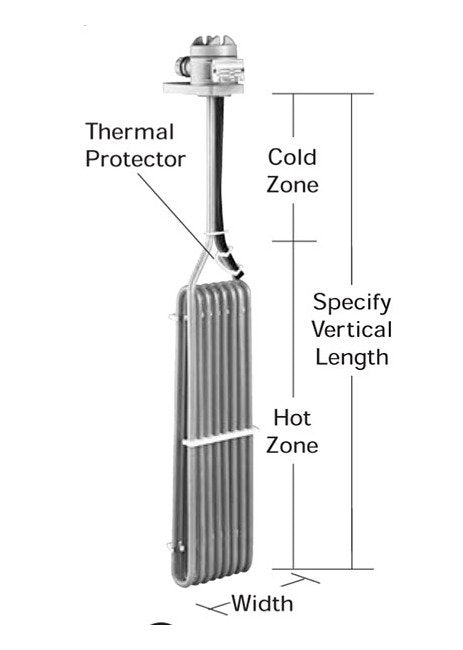

Specifications Hot Zone
19 " | 483 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Max Cold Zone
35 " | 889 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
29 " | 737 mm
Specifications Phase
Single
Specifications Series
HXO
Specifications Shipping Weight
15.0 Pound
Specifications Std Cold Zone
10 " | 254 mm
Specifications Volts
240 V
Specifications Watts
4000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
15.0 lbs | 6.8 kg
Specifications Width
6 " | 152 mm
