Process Technology HXO Series Fluoropolymer (PTFE) Heaters with Thermal Overload Protection
Process Technology HXO Series Fluoropolymer (PTFE) Heaters with Thermal Overload Protection
SKU:HEA-aad676
Efficient Process Technology HXO Series Fluoropolymer (PTFE) Heaters with thermal protection for industrial applications
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Process Technology HXO Series Fluoropolymer (PTFE) Heaters with Thermal Overload Protection
$699.99
Quantity: 1
Claim Your Seller Account
Process Technology HXO Series Fluoropolymer (PTFE) Heaters with Thermal Overload Protection
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Process Technology HXO Series Fluoropolymer (PTFE) Heaters are designed with precision to meet the demanding requirements of industrial processes. Featuring a robust construction with a Fluoropolymer (PTFE) guard for enhanced durability and resistance to corrosive solutions exceeding 180°F (82°C), these heaters ensure efficient heat transfer and prolonged lifespan. With a watt density of 10 W/in² and various thermal protector options available, including resettable protectors for solutions up to 250°F (121°C), these heaters offer customizable and reliable thermal control. Certified by CE and UL Listed, Process Technology guarantees superior quality and compliance with international safety standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Certifications
CE | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXO06-19-29G

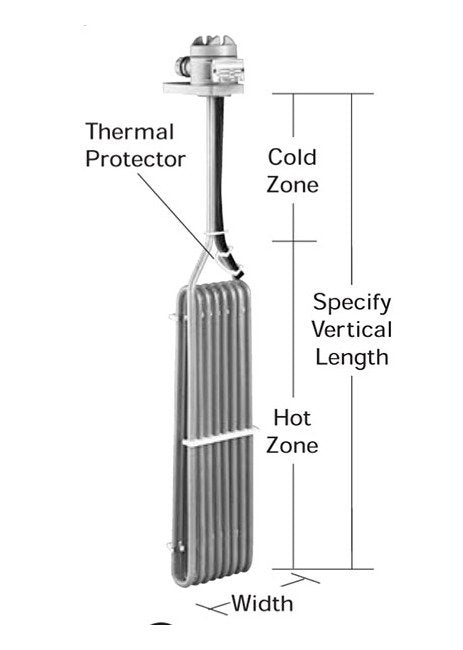

Specifications Hot Zone
19 " | 483 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Max Cold Zone
35 " | 889 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
29 " | 737 mm
Specifications Phase
Single
Specifications Series
HXO
Specifications Shipping Weight
15.0 Pound
Specifications Std Cold Zone
10 " | 254 mm
Specifications Volts
480 V
Specifications Watts
4000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
15.0 lbs | 6.8 kg
Specifications Width
6 " | 152 mm
