Process Technology HXO Series Fluoropolymer (PTFE) Heaters with Thermal Overload Protection
Process Technology HXO Series Fluoropolymer (PTFE) Heaters with Thermal Overload Protection
SKU:HEA-2815c2
Powerful and versatile HXO Series Fluoropolymer (PTFE) Heaters with thermal overload protection for safe and efficient heating solutions.
Regular price
$1,199.99
Regular price
Sale price
$1,199.99
Unit price
per
Initiate Order
Process Technology HXO Series Fluoropolymer (PTFE) Heaters with Thermal Overload Protection
$1,199.99
Quantity: 1
Claim Your Seller Account
Process Technology HXO Series Fluoropolymer (PTFE) Heaters with Thermal Overload Protection
$1,199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Process Technology HXO Series Fluoropolymer (PTFE) Heaters provide reliable and efficient heating solutions for a variety of applications. With a wattage of 8000W and voltage of 480V, these heaters boast a watt density of 10 W/in², ensuring quick and uniform heating. The inclusion of thermal overload protection options (P1, P2, P3, P8) makes them versatile and safe for solutions up to 250°F. Manufactured by Process Technology, these heaters come with standard polypropylene guards and optional Fluoropolymer (PTFE) guards for corrosive solutions, meeting CE and UL Listed certifications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Certifications
CE | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXO08-36-47G

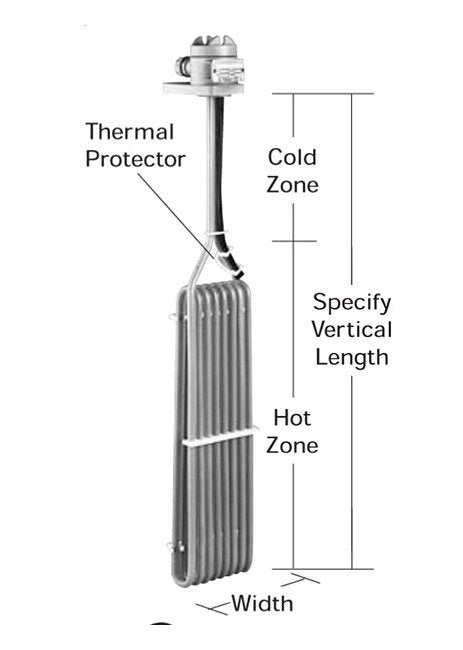

Specifications Hot Zone
36 " | 914 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Max Cold Zone
28 " | 711 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
47 " | 1194 mm
Specifications Phase
Single
Specifications Series
HXO
Specifications Shipping Weight
25.0 Pound
Specifications Std Cold Zone
11 " | 279 mm
Specifications Volts
480 V
Specifications Watts
8000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
25.0 lbs | 11.3 kg
Specifications Width
8 " | 203 mm
