Process Technology HXO Series Fluoropolymer (PTFE) Heaters with Thermal Overload Protection
Process Technology HXO Series Fluoropolymer (PTFE) Heaters with Thermal Overload Protection
SKU:HEA-eb59f3
Reliable Process Technology HXO Series Fluoropolymer (PTFE) Heaters with thermal overload protection for precise and safe industrial heating applications.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Process Technology HXO Series Fluoropolymer (PTFE) Heaters with Thermal Overload Protection
$599.99
Quantity: 1
Claim Your Seller Account
Process Technology HXO Series Fluoropolymer (PTFE) Heaters with Thermal Overload Protection
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

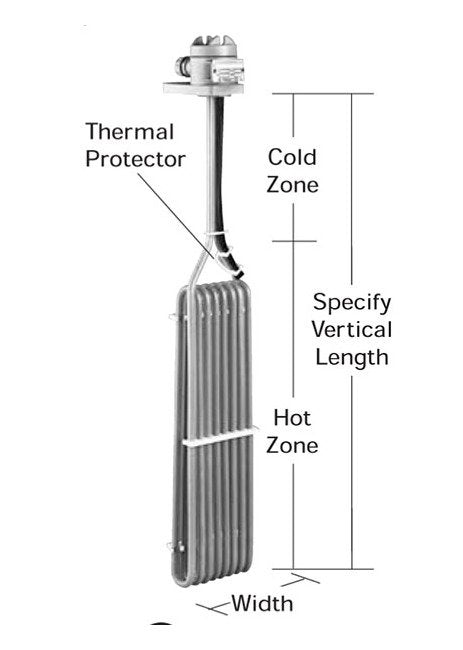

The Process Technology HXO Series Fluoropolymer (PTFE) Heaters are expertly designed for industrial applications that require precision heating in corrosive environments. With a durable Fluoropolymer (PTFE) construction, these heaters offer exceptional resistance to chemicals and high temperatures. Featuring a Watt Density of 10 W/in², wattage of 5000 W, and a standard voltage of 240 V, these heaters ensure efficient and uniform heat distribution. Moreover, they come with customizable thermal protectors for solutions up to 250°F, guaranteeing operational safety and longevity. The HXO Series Heaters are CE and UL Listed, meeting stringent industry certifications for quality and reliability.
Product Specifications
Specifications Certifications
CE | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXO06-20-35G
Specifications Hot Zone
20 " | 508 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Max Cold Zone
31 " | 787 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
35 " | 889 mm
Specifications Phase
Single
Specifications Series
HXO
Specifications Shipping Weight
18.0 Pound
Specifications Std Cold Zone
15 " | 381 mm
Specifications Volts
240 V
Specifications Watts
5000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
18.0 lbs | 8.2 kg
Specifications Width
6 " | 152 mm
