The Process Technology HXO Series Fluoropolymer (PTFE) Immersion Heaters are designed for efficient and reliable heating in demanding industrial applications. With a watt density of 10 W/in², 8000 watts power rating, and various thermal protector options available, these heaters ensure precise temperature control and thermal overload protection. The inclusion of Fluoropolymer (PTFE) guards, recommended for aggressive solutions and temperatures exceeding 180°F, enhances chemical resistance and durability. Certified by CE and UL Listed, these heaters offer a combination of performance, safety, and longevity for your heating needs.
Product Specifications
Specifications Certifications
CE | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXO08-36-47G

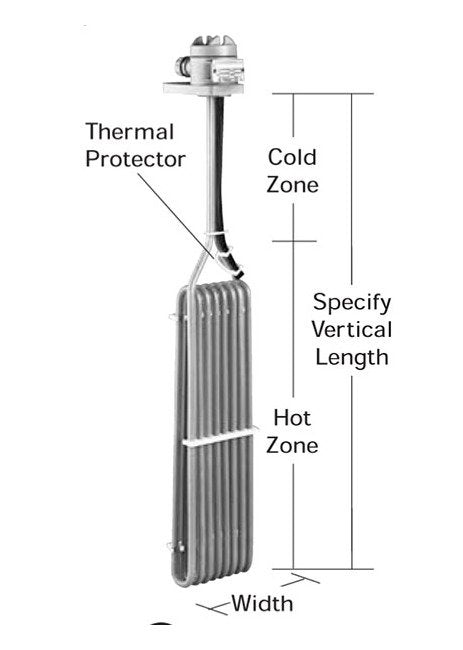

Specifications Hot Zone
36 " | 914 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Max Cold Zone
28 " | 711 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
47 " | 1194 mm
Specifications Phase
Single
Specifications Series
HXO
Specifications Shipping Weight
25.0 Pound
Specifications Std Cold Zone
11 " | 279 mm
Specifications Volts
240 V
Specifications Watts
8000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
25.0 lbs | 11.3 kg
Specifications Width
8 " | 203 mm
