Process Technology HXO Series PTFE Heaters
Process Technology HXO Series PTFE Heaters
SKU:HEA-4f1c5e
High-performance Process Technology HXO Series PTFE Heaters for industrial applications. Safe, efficient, and precise.
Regular price
$749.99
Regular price
Sale price
$749.99
Unit price
per
Initiate Order
Process Technology HXO Series PTFE Heaters
$749.99
Quantity: 1
Claim Your Seller Account
Process Technology HXO Series PTFE Heaters
$749.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

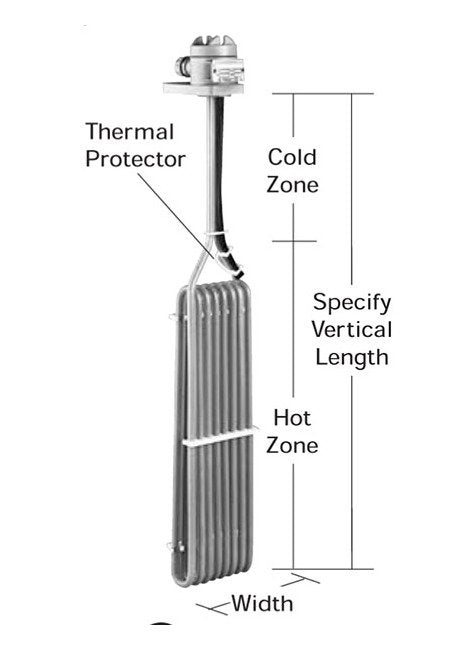

The Process Technology HXO Series Fluoropolymer (PTFE) Heaters are designed for demanding industrial applications requiring precise thermal control. These electric immersion heaters offer high watt density, reaching 9000 Watts at 480 Volts, with a width of 8 inches and a hot zone length of 40 inches. Equipped with a range of thermal protectors, including options suitable for solutions up to 250°F, these heaters ensure safety and efficiency. Guards, such as the recommended Fluoropolymer (PTFE) guard for corrosive solutions, can be added for enhanced protection. With CE and UL certifications, these heaters meet stringent quality and safety standards.
Product Specifications
Specifications Certifications
CE | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXO08-40-54G
Specifications Hot Zone
40 " | 1016 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Max Cold Zone
30 " | 762 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
54 " | 1372 mm
Specifications Phase
Single
Specifications Series
HXO
Specifications Shipping Weight
28 Pound
Specifications Std Cold Zone
14 " | 356 mm
Specifications Volts
480 V
Specifications Watts
9000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
28.0 lbs | 12.7 kg
Specifications Width
8 " | 203 mm
