Process Technology HXO Series PTFE Heaters with Thermal Overload Protection
Process Technology HXO Series PTFE Heaters with Thermal Overload Protection
SKU:HEA-d79861
Process Technology HXO Series PTFE Heaters with Thermal Overload Protection. High watt density, thermal protectors, and optional PTFE guards for efficient heating and chemical resistance.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Process Technology HXO Series PTFE Heaters with Thermal Overload Protection
$799.99
Quantity: 1
Claim Your Seller Account
Process Technology HXO Series PTFE Heaters with Thermal Overload Protection
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Process Technology HXO Series Fluoropolymer (PTFE) Heaters are expertly designed for industrial applications requiring precise temperature control and chemical compatibility. With a wattage of 9000W at 240V, these heaters feature a high watt density of 10 W/in², ensuring efficient heating in diverse solutions. The inclusion of thermal protectors, such as the resettable P2 and P3 options, safeguards against overheating while enhancing operational safety. Recommended for solutions exceeding 180°F, the optional PTFE guards offer superior chemical resistance, making them ideal for corrosive environments. Certified by CE and UL, these heaters prioritize performance, longevity, and compliance with stringent industry standards, making them a reliable choice for both consumer and institutional buyers.
Product Specifications
Specifications Certifications
CE | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXO08-40-54G

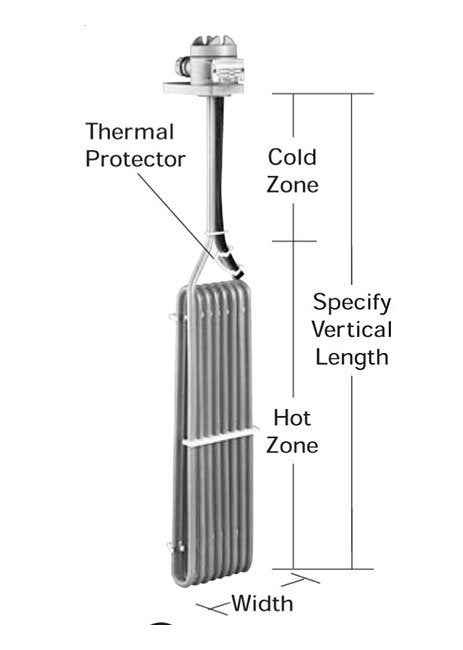

Specifications Hot Zone
40 " | 1016 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Max Cold Zone
30 " | 762 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
54 " | 1372 mm
Specifications Phase
Single
Specifications Series
HXO
Specifications Shipping Weight
28 Pound
Specifications Std Cold Zone
14 " | 356 mm
Specifications Volts
240 V
Specifications Watts
9000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
28.0 lbs | 12.7 kg
Specifications Width
8 " | 203 mm
