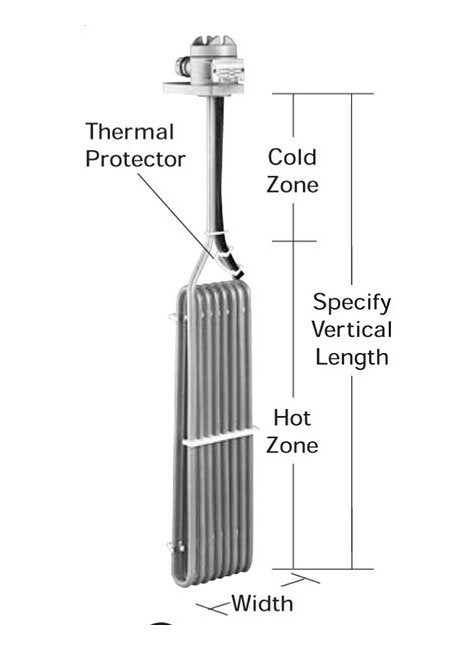

The Process Technology HXO Series Fluoropolymer (PTFE) Heaters are designed for demanding industrial applications where thermal overload protection is essential. Featuring a watt density of 10 W/in², these heaters deliver 3000 W at 240 V, with a hot zone of 12" and an overall length of 23". Guards are recommended for safety, with options including polypropylene and PTFE guards for specific chemical solutions. Certified CE and UL Listed, these heaters ensure reliability and performance in challenging environments.
Product Specifications
Specifications Certifications
CE | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXO06-12-23G
Specifications Hot Zone
12 " | 305 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Max Cold Zone
35 " | 889 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
23 " | 584 mm
Specifications Phase
Single
Specifications Series
HXO
Specifications Shipping Weight
13.0 Pound
Specifications Std Cold Zone
11 " | 279 mm
Specifications Volts
240 V
Specifications Watts
3000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
13.0 lbs | 5.9 kg
Specifications Width
6 " | 152 mm
