Process Technology HXO Series PTFE Heaters with Thermal Protection
Process Technology HXO Series PTFE Heaters with Thermal Protection
SKU:HEA-0354f7
Process Technology HXO Series PTFE Heaters - Reliable heating with thermal overload protection. CE & UL certified for safety.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Process Technology HXO Series PTFE Heaters with Thermal Protection
$349.99
Quantity: 1
Claim Your Seller Account
Process Technology HXO Series PTFE Heaters with Thermal Protection
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

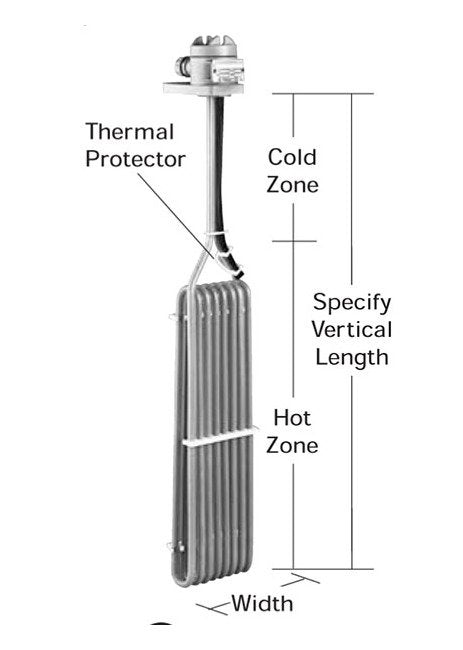

The Process Technology HXO Series Fluoropolymer (PTFE) Heaters are designed for demanding applications requiring thermal overload protection. Featuring a Watt Density of 10 W/in², these heaters deliver 1000W power at 120V. With options for various thermal protectors, including P1, P2, P3, and P8, these heaters ensure safe operation with solutions up to 250°F. The standard polypropylene guard is suitable for most applications, while the optional PTFE guards are recommended for aggressive chemical environments. Certified by CE and UL, these heaters combine reliability and performance for critical heating needs.
Product Specifications
Specifications Certifications
CE | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXO06-07-11G
Specifications Hot Zone
7 " | 178 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Max Cold Zone
36 " | 914 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
11 " | 279 mm
Specifications Phase
Single
Specifications Series
HXO
Specifications Shipping Weight
7.0 Pound
Specifications Std Cold Zone
5 " | 127 mm
Specifications Volts
120 V
Specifications Watts
1000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
7.0 lbs | 3.2 kg
Specifications Width
6 " | 152 mm
