Process Technology HXO Series PTFE Heaters with Thermal Protection
Process Technology HXO Series PTFE Heaters with Thermal Protection
SKU:HEA-f99327
Efficient Process Technology HXO Series PTFE Heaters with high watt density and multiple thermal protection options for industrial heating applications.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Process Technology HXO Series PTFE Heaters with Thermal Protection
$349.99
Quantity: 1
Claim Your Seller Account
Process Technology HXO Series PTFE Heaters with Thermal Protection
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

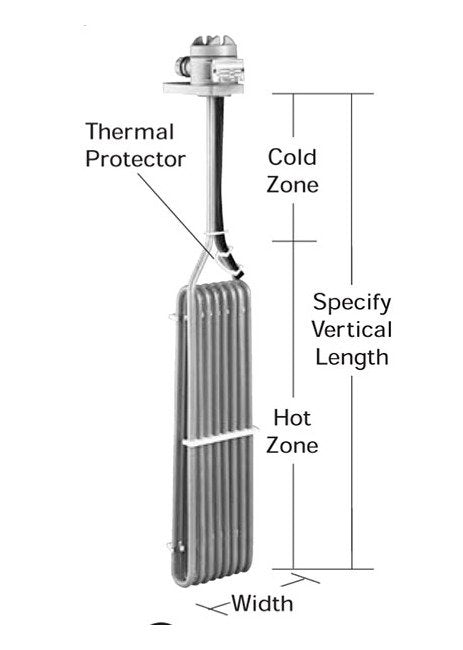

The Process Technology HXO Series Fluoropolymer (PTFE) Heaters are designed for efficient and reliable heating in a variety of industrial applications. With a watt density of 10 W/in² and 500W power, these heaters ensure quick heat-up times. They come with various options for thermal protectors, including resettable options suitable for solutions up to 250°F. Recommended guards provide additional safety, with Fluoropolymer (PTFE) guards specifically recommended for corrosive solutions exceeding 180°F. CE and UL Listed, these heaters meet stringent quality standards.
Product Specifications
Specifications Certifications
CE | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXO05-06-11G
Specifications Hot Zone
6 " | 152 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Max Cold Zone
36 " | 914 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
11 " | 279 mm
Specifications Phase
Single
Specifications Series
HXO
Specifications Shipping Weight
6.0 Pound
Specifications Std Cold Zone
5 " | 127 mm
Specifications Volts
120 V
Specifications Watts
500 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
6.0 lbs | 2.7 kg
Specifications Width
5 " | 127 mm
