The Process Technology HXO Series Fluoropolymer (PTFE) Heaters are designed for precision heating in corrosive environments. With a wattage of 3000W and thermal overload protection options, these immersion heaters offer efficiency and safety. The Fluoropolymer (PTFE) guards, recommended for solutions exceeding 180°F, ensure durability. CE and UL Listed certifications guarantee quality and compliance. Ideal for various applications requiring high-performance heating solutions.
Product Specifications
Specifications Certifications
CE | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXO06-12-23G

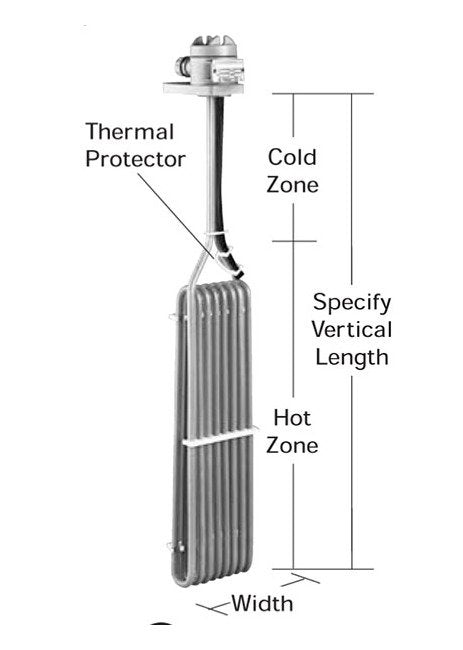

Specifications Hot Zone
12 " | 305 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Max Cold Zone
35 " | 889 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
23 " | 584 mm
Specifications Phase
Single
Specifications Series
HXO
Specifications Shipping Weight
13.0 Pound
Specifications Std Cold Zone
11 " | 279 mm
Specifications Volts
480 V
Specifications Watts
3000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
13.0 lbs | 5.9 kg
Specifications Width
6 " | 152 mm
