Process Technology L Series Metal L-Shaped Heaters
Process Technology L Series Metal L-Shaped Heaters
SKU:HEA-3d0671
Durable 316 Stainless Steel L-Shaped Heaters with superior chemical resistance, outstanding performance, and built-in safety features.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Process Technology L Series Metal L-Shaped Heaters
$399.99
Quantity: 1
Claim Your Seller Account
Process Technology L Series Metal L-Shaped Heaters
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

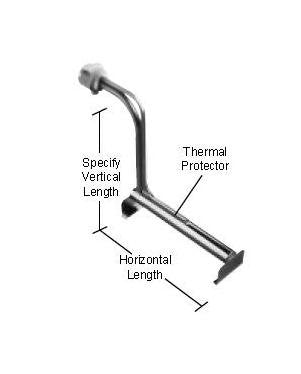

The Process Technology L Series Metal L-Shaped Heaters are crafted from durable 316 Stainless Steel, ensuring superior chemical resistance for applications in aqueous alkaline solutions and plating tanks. Featuring a robust construction with options for different thermal protectors, these heaters offer outstanding performance with watt densities of up to 35 watts per square inch. Safety is paramount with built-in thermal protectors and grounded construction. Certified to meet cULus and CE standards, these heaters are available in various sizes and voltages, making them versatile for industrial use.
Product Specifications
Features And Benefits Features And Benefits
SUPERIOR CHEMICAL RESISTANCE: For use in most aqueous alkaline solutions, and plating and phosphate tanks. Check solution recommendation chart with your chemical supplier for proper sheath material selection.RUGGED CONSTRUCTION: Heavy wall metal sheaths available in: steel, 304 stainless steel, 316 stainless steel, titanium.OUTSTANDING PERFORMANCE: Watt densities of 35 watts per square inch (5.4 w/cm2) ensure long service life.CORROSION RESISTANT HEAD: Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.SAFETY FEATURES: Grounded construction.Thermal protector built in. Replaceable P1 protector standard for solutions up to 180°F (82°C).Non-floating construction.CERTIFICATIONS: cULus listed (except steel) and CE compliant (except 600 volts).SIZES: 1,000 watts to 12,000 watts.VOLTAGES: 120 to 600 volts.OPTIONS AVAILABLE (consult factory): Replaceable thermal protectors:P4: for solutions up to 230°F (110°C).P5: for solutions up to 300°F (149°C).Resettable thermal protectors:P2: for solutions up to 180°F (82°C).P6: for solutions up to 230°F (110°C).P7: for solutions up to 300°F (149°C).Special configurations and lengths.Longer wire and conduit lengths.Lower watt densities for highly viscous solutions.Temperature and level controls sized to match the heater (sold separately).All metal welded junction box.
Specifications Horizontal Length
13 " | 330 mm
Specifications Manufacturer
Process Technology
Specifications Material
316 Stainless Steel
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Replaceable thermal protector: P4: for solutions up to 230°F (110°C). | Replaceable thermal protector: P5: for solutions up to 300°F (149°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P6: for solutions up to 230°F (110°C). | Resettable thermal protector: P7: for solutions up to 300°F (149°C).
Specifications Phase Available
Single (Standard) | Three
Specifications Shipping Weight
10.0 Pound
Specifications Vertical Length
15 in | 381 mm
Specifications Volts
120 V
Specifications Watts
1000 W
Specifications Weight
10.0 lbs | 4.5 kg
