Process Technology Low Profile Fluoropolymer Heaters
Process Technology Low Profile Fluoropolymer Heaters
SKU:HEA-fe2b80
Efficient Process Technology Fluoropolymer Heaters for industrial applications. CE, CSA, and UL Listed for safety & quality.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Process Technology Low Profile Fluoropolymer Heaters
$349.99
Quantity: 1
Claim Your Seller Account
Process Technology Low Profile Fluoropolymer Heaters
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

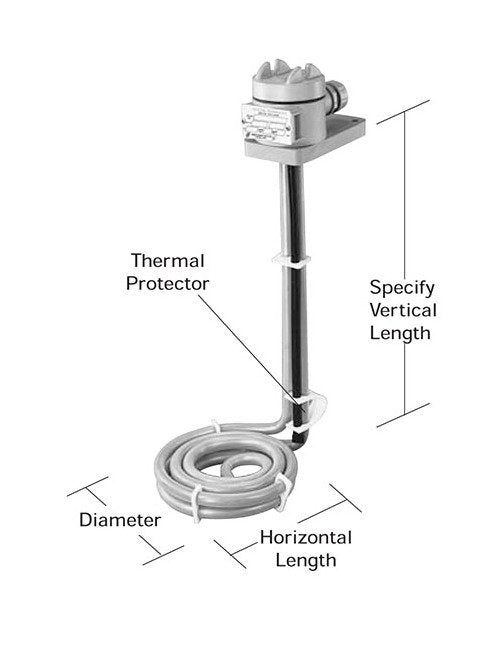

The Process Technology Low Profile Fluoropolymer (PTFE) Heaters from the HXFL Series provide reliable, efficient heating solutions for various industrial applications. Constructed with high-quality fluoropolymer material, these heaters offer a watt density of 10 W/in², 1000 watts power, and 240 volts capacity. The innovative design includes a replaceable thermal protector for optimal safety and control, making them ideal for solutions up to 250°F. With certifications including CE, CSA, and UL Listed, these heaters ensure compliance with rigorous industry standards.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Construction
Ground wire is welded to stainless steel sheath.
Specifications Diameter
6 " | 152 mm
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXFL06-R*G
Specifications Horizontal Length
6 " | 152 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer
Specifications Max Cold Zone
36 " | 914 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Phase
Single
Specifications Series
HXFL
Specifications Shipping Weight
7.0 Pound
Specifications Standard Vertical Length
12 " | 305 mm
Specifications Volts
240 V
Specifications Watts
1000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
7.0 lbs | 3.2 kg
